Handheld Rock Drilling And Splitting Machine For Mining

Handheld Rock Drilling and Splitting Machine for Mining

Handheld rock splitter machine is a portable mechanical device used to quickly and efficiently decompose rocks in environments where large machinery cannot be used. The handheld rock splitting gun is mainly composed of a hydraulic pump station, a high-pressure oil pipeline, a splitting gun, etc. Its working principle is to drive the oil cylinder with ultra-high pressure oil output from the pump station to generate a huge driving force. After mechanical amplification, the split object is split in a predetermined direction. Handheld rock splitting guns are divided into electric motor and diesel models, making them suitable for various environments.

Technical Parameter of Handheld Rock Drilling and Splitting Machine for Mining

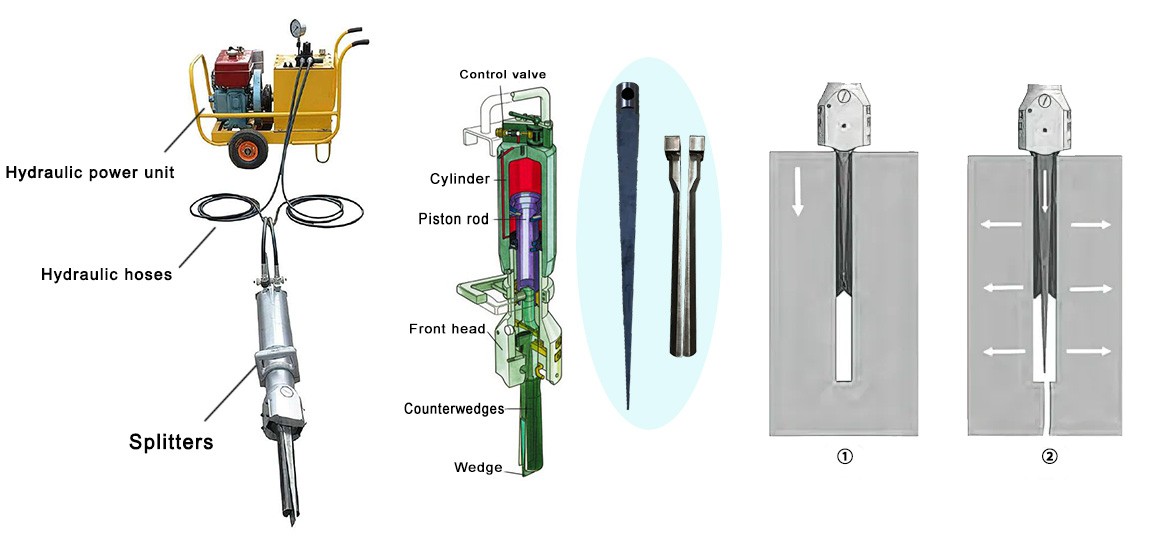

How do Handheld Rock Drilling and Splitting Machines for Mining work?

1. Drill a hole of the appropriate depth and diameter.
2. Insert the wedge of the rock splitter into it and align it to determine the direction of splitting.
3. Start the hydraulic power unit, and the hydraulic power unit outputs a pressure of 60Mpa to the rock splitter.


The hydraulic cylinder in the rock splitter pushes the wedge pack to expand sideways with a force of hundreds of tons, breaking the structure of rock or concrete from within.

If you want to learn more details about this, please contact :

Email: Jenny@ztmineequipment.com

Whatsapp:+8613201801998

Main Features Of Handheld Rock Drilling and Splitting Machine for Mining

1. Safety and Enormous splitting force up to 600 t

2. Environmental Friendliness

3. Economic Efficiency

4. Can be used anywhere

5. Easy to use and transport

Application areas of Handheld Rock Drilling and Splitting Machine for Mining

Handheld rock splitting guns can be used for stone mining in the mining industry, such as granite, marble, sandstone, limestone, etc. Suitable for secondary disintegration of large rock ores, it can completely replace manual disintegration.

Handheld Rock Splitter in Shaanxi Zhongtuo Mine Equipment Co., Ltd

Company Profile

Shaanxi Zhongtuo Mining Equipment Co., Ltd. have an advanced production base and a complete supply chain system. By providing more efficient and safer products, we can We can ensure product quality and safety, reduce cost waste, and reduce safety risks, and promote the intelligent process of the global mine equipment industry. Products include Piston rock splitter, Large rock splitter, Handled rock splitter, Hydraulic rock drill & splitter, Co2 rock breaking system and other mining equipment etc. Our goal is to create a one-stop mine equipment solution.

Shaanxi Zhongtuo Mine Equipment Co., Ltd

Shaanxi Zhongtuo Mining Equipment Co., Ltd. is a supplier of mine equipment products integrating R&D, manufacturing, sales and service.

• 5K +
  Completed Projects
  5k complete work
• 30 +
  Our Expert
  Expert Mine Working

LEARN MORE

Packaging and Shipping

Packaging details:

1. Outer packaging: standard sea export bakelite box;

2. Inner packaging: stretch film, moisture-proof plastic film;

3. Customized according to your requirements.

Shipping

1. Port: Tianjin, Qingdao, Shanghai, or other ports according to your requirements.

2. Shipping: FOB/CIF/DDU quotations are available.

3. Mode of transportation: Logistics; by car; by train; by transportation; by air, etc.

FAQ

Q: What are the payment methods?

A: Accepted payment methods include T/T, Western Union, Money Gram, Paypal, and L/C.

Q: How long is the warranty period?

A: One year for the machine and technical assistance based on your requirements.

Q: How long will it take to arrange production?

A: We can deliver standard goods within 7-15 days. Other nonstandard electrical equipment will be delivered within 25 to 30 days.

Q: What trade terms are available?

A: Available trading terms include FOB, CIF, CFR, EXW, and so on.
