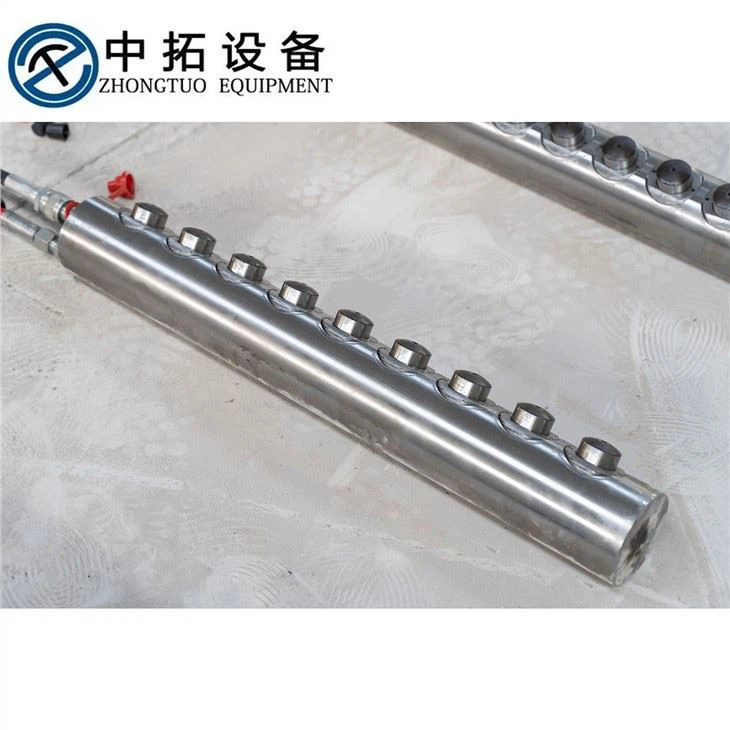

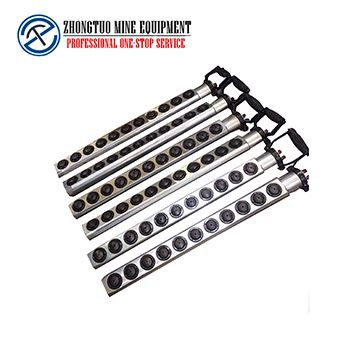

Introduction of Hydraulic Piston Rock Splitter:
A piston rock splitter is a new tool to break rock and concrete. one full set piston rock splitter includes a piston rock splitter and power unit.
Make a hole in the stone surface to be excavated at intervals of 0.5 meters, and then put the Hydraulic Piston Rock Splitter to separate the stone from the mountain. Make many holes in the vertical and horizontal directions of the rock, such as excavating a piece 10 meters long and 6 meters wide. For a stone with a height of 6 meters, a hole of 80mm must be drilled with a cumulative length of 60 meters. Then a saw blade is used to cut a groove with a depth of 150 mm and a width of 5 mm between the two holes. , But the flatness of the surface is not as good as the groove). Then use the splitting to pierce the stone into the hole. The stone split from the mountain with a splitter is a whole, and the flatness error is generally within a few centimeters. Compared with the method of excavation with a splitting machine, excavation with a splitting machine is obviously an economical method of quarrying.
Specification of Hydraulic Piston Rock Splitter:
|
Product Model |
Borehole diameter |
Minimum drilling depth (mm) |
Working pressure (Mpa) |
Forcing Power (T) |
Working power (kw) |
Machine weight(kg) |
|
P90 |
85 |
1000 |
100-120 |
1200 |
4 |
30 |
|
P100 |
90-95 |
1000 |
100-120 |
1300 |
4 |
35 |
|
P110 |
100-105 |
1000 |
100-120 |
1600 |
5.5 |
40 |
If you want to learn more details about this machine, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998
Main application areas of Hydraulic Piston Rock Splitter：
Quarrying and mining industry
-
Excavation of large blocks; can complete the excavation of a block of several thousand cubic meters.
-
Cutting of large blocks; can complete the manufacturing of blocks below 1 cubic meter.
-
Large waste rock, flat place.
Construction Engineering
1. Tunnel excavation.
2. The underground mine access road extends.
3. Excavation of highway tunnels and tunnels.
4. Excavation of subway tunnel.
5. Excavation of submarine tunnels.
6. Excavation of underground artificial river channels.
7. Tunnel excavation.
8. Excavation of artificial rivers and rock ditches.
9. Foundation excavation.
