Hydraulic Lifting Equipment Mono Strand Jack

Feature of hydraulic lifting jack
1. No restrict in weight, span, or area by an extended combination of lifting equipment
2. As long as there is a reasonable load-bearing hanging point, lifting height is not restricted
3. Lifting anchor possesses a reverse movement self-locking function, which makes the lifting process safe and the component can be locked reliably at any position for a long time during the lifting process
4. Small in size and weight, large in capacity, suitable for use in confined spaces or lifting high tonnage components indoors High automation, easy and flexible operation, good security, high reliability, wide application, versatility.

Description

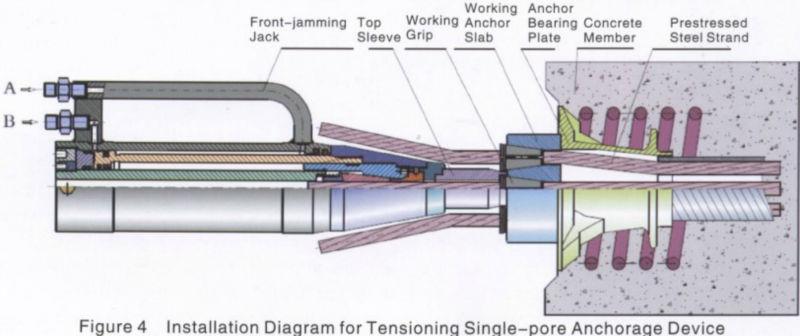

Hydraulic Lifting Equipment Mono Strand Jack is a multi-purpose pre-stressed tensioning device, easy to operate. Mainly used for single hole tensioning. But also for porous preload, tension and troubleshooting, and can be applied to a variety of sizes of high-strength steel wire and strand.

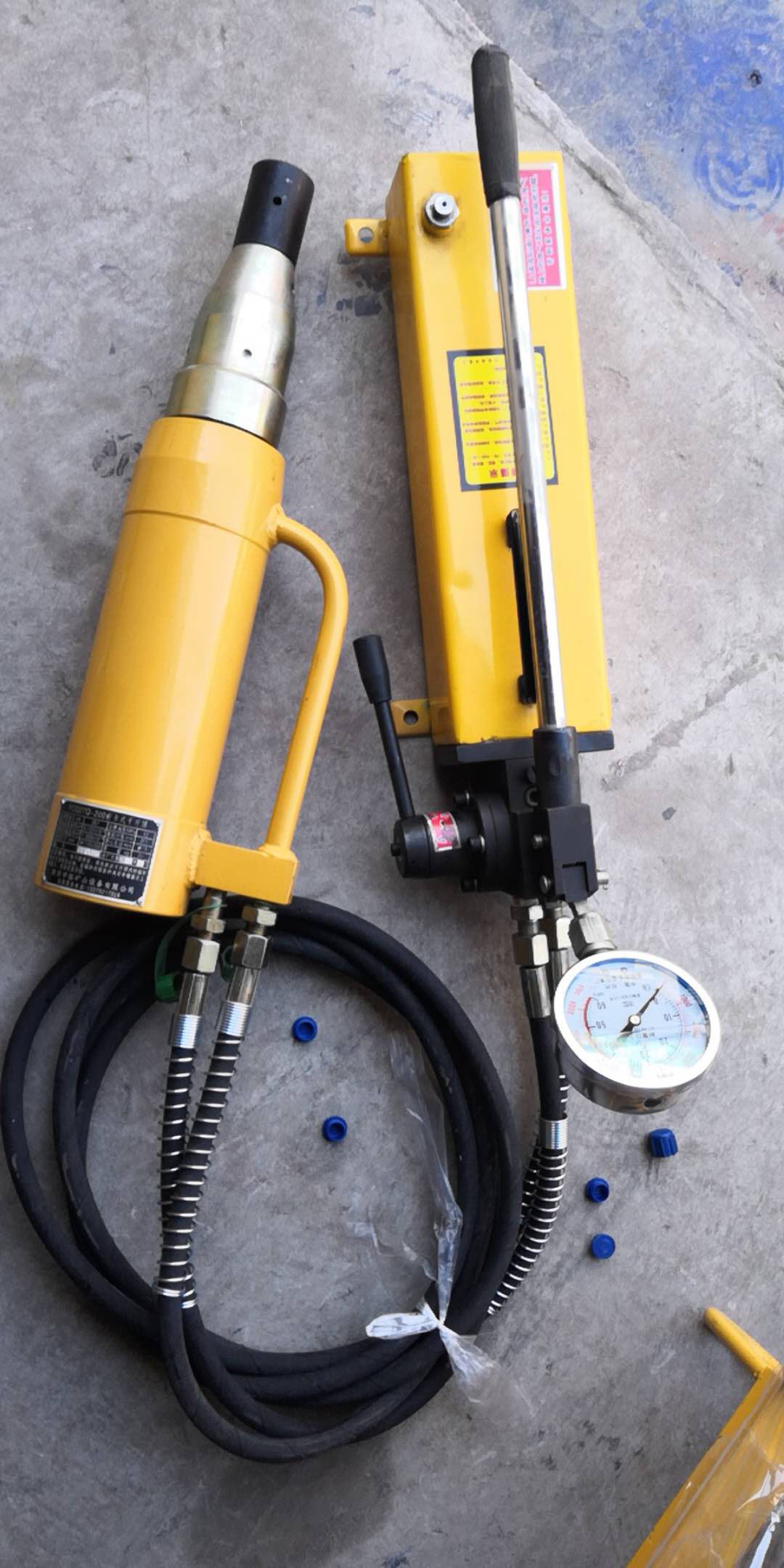

mono strand pulling jack (3)

Application of Hydraulic Strand Jack

1. Hydraulic Strand Jack is a kind of general-purpose for prestressing applied for pre-tension and post-tension of various steel strand anchors.
2. Hydraulic strand jack is widely used in precast structures, such as prestressed bridge girders and decks units, rock and earth anchoring construction, hydraulic structures, and other great projects.
3. The hydraulic prestressing Jack is also easy to hoist, operate, and convenient to maintain, with high contamination tolerance and durability.

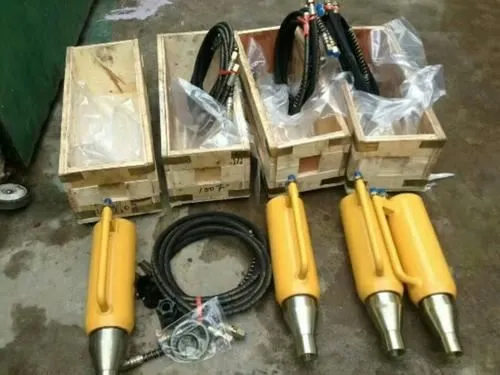

mono prestressed jack

Specification of Hydraulic Strand Jack

Model	Capacity (Ton)	Cylinder diameter (mm)	Cylinder height (mm)	Steel strand quantity (pcs)	Steel strand diameter (mm)	Weight (kg)
ZT-TSD-100	100	400	1350	9	155	500
ZT-TSD-200A	200	490	1650	18	170	950
ZT-TSD-200B	200	510	1700	19	190	1000
ZT-TSD-250	250	560	1720	25	250	1200
ZT-TSD-350A	350	635	1770	31	260	1900
ZT-TSD-350B	350	635	2650	31	260	2800
