Products Description
The Non-Explosive Hydraulic Rock Splitter for Mine Breaker is a highly efficient and reliable tool designed for various applications. This rock splitter operates based on a robust working principle. It consists of a high hydraulic pump station and a split rod. The force generated by the ultra-high pressure oil pump station, which ranges from 140 to 180MP, is directed towards the hole. With a powerful force of 3000t, this hydraulic rock splitter effectively splits rocks in a predetermined direction.
Products Paraments
|
Model |
Drilling Diameter |
Drilling Depth |
Rated Pressure MPa |
Splitting Force(T) |
Power KW |
Weight kg |
Length |
piston number |
|
P90 |
85 |
1000mm |
100-120 |
1200 |
4 |
30 |
645 |
9 |
|
P100 |
90-95 |
1000mm |
100-120 |
1300 |
7.5 |
35 |
820 |
11 |
|
P110 |
100-105 |
1000mm |
100-120 |
1600 |
7.5 |
45 |
710 |
8 |
|
P120 |
110-115 |
1000mm |
100-200 |
1900 |
7.5 |
50 |
780 |
8 |
|
P130 |
120-127 |
1000mm |
100-200 |
2200 |
7.5 |
65 |
1060 |
10 |
Products Features

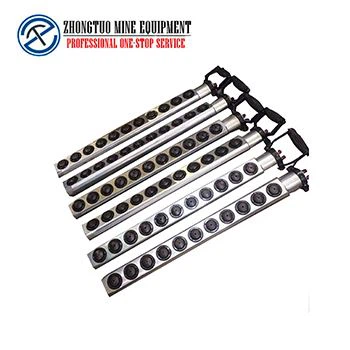

It is made up of vacuum processing reinforced cylinder, multiple jacks, multiple high-pressure oil pipes and other components. Divided into a feed pipe, a return pipe. When the oil is fed, the jack of the hydraulic rock breaking rod will stretch out, which is a working process, that is, the time of the rock breaking.
Its power source is the hydraulic power station through the pipeline transmission of hydraulic oil, power station output pressure can reach 160MP, after the secondary conversion of splitting rod splitting force can reach 5000t. Single 30-140kg, a power station standard equipped with 6 splitting rods.
If you want to learn more details about this, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998
Products Application

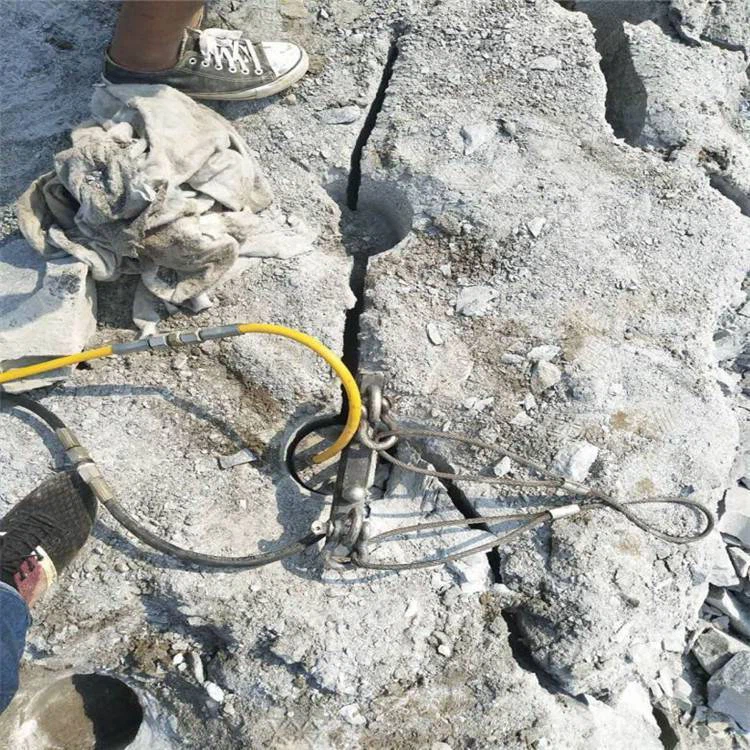

1. The stone without blasting in medium and large stone fields can be split with splitting rod to get larger stones.
2. Open-pit mining of gold, silver, lead, tin, aluminum and other metal mines, with the use of DH drilling Yilong brand hydraulic plunger type splitting rod can quickly split the ore body, safe, efficient, no vibration.
3. When a huge rock needs to be split when digging a subway tunnel under a city building and explosives cannot be used, a splitting rod can be used to effectively split the rock.
4. The splitting and removal of large rocks in geotechnical engineering can replace the pick, the crushing hammer and the expansion agent to excavate the mountain without blasting.
If you want to learn more details about this, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:13201801998
