Description of ZT250 Rock Splitting Machine
Handheld rock splitters are powerful and cost-effective alternatives to other traditional demolition tools. It is especially suitable for narrow areas where large machines cannot work and places with strict restrictions on noise and dust. The whole machine is light and flexible, easy to operate, easy to transport, and can be operated by only one person, so it can be used without any problem in confined spaces or places where large machinery is difficult to access, and can even work underwater. No noise no vibration and flying stones when working. Over the years, our hand-held splitters from Shaanxi Zhongtuo mine equipment Co., Ltd have achieved great success worldwide for their high quality, high performance, long service life, and very competitive price, playing a huge role in the global demolition field.
Technical Parameter of ZT250 Rock Splitting Machine
|
Model |
Wedge Length mm |
Drilling Diameter mm |
Drilling Depth mm |
Rated Pressure MPa |
Splitting Force T |
Power KW |
Weight kg |
|
ZT250 |
250 |
38 |
450-500mm |
60-80 |
300 |
4 |
35 |
|
ZT350 |
350 |
42 |
700mm |
60-80 |
400 |
4 |
35 |
|
ZT450 |
450 |
46 |
900-1000 mm |
60-80 |
600 |
4 |
35 |
A complete Rock and Concrete Splitter consists of three components:
1. Splitters
2. Hydraulic power unit
3. Hydraulic hoses
2. Hydraulic power unit
3. Hydraulic hoses

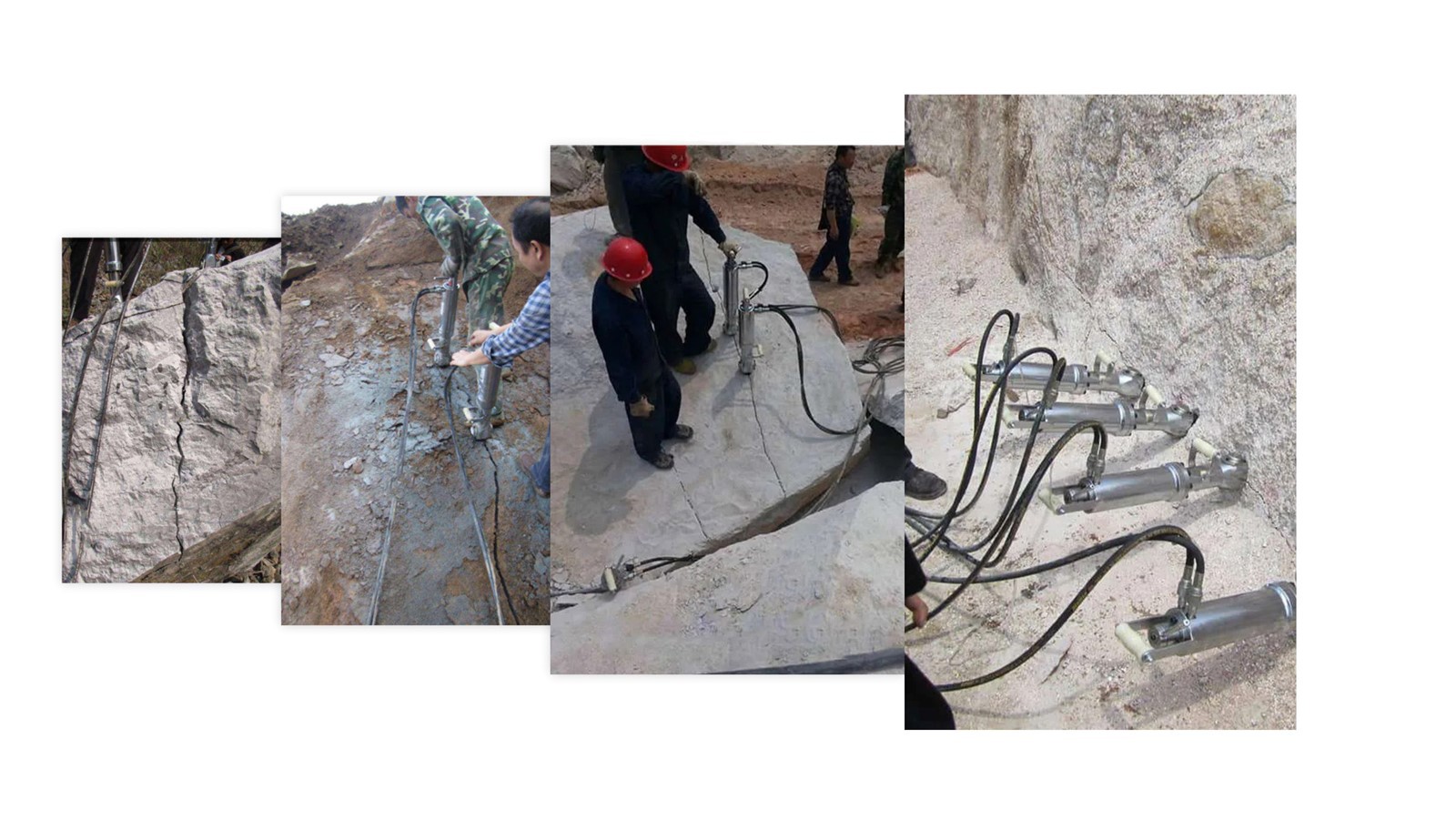

How does a Handheld rock-splitting machine work?
1. Drill a hole of the appropriate depth and diameter.
2. Insert the wedge of the rock splitter into it and align it to determine the direction of splitting.
3. Start the hydraulic power unit, and the hydraulic power unit outputs a pressure of 60Mpa to the rock splitter.
The hydraulic cylinder in the rock splitter pushes the wedge pack to expand sideways with a force of hundreds of tons, breaking the structure of rock or concrete from within.
1. Drill a hole of the appropriate depth and diameter.
2. Insert the wedge of the rock splitter into it and align it to determine the direction of splitting.
3. Start the hydraulic power unit, and the hydraulic power unit outputs a pressure of 60Mpa to the rock splitter.
The hydraulic cylinder in the rock splitter pushes the wedge pack to expand sideways with a force of hundreds of tons, breaking the structure of rock or concrete from within.
5 Main Features of the ZT250 Rock Splitting Machine
1. Safety and Enormous splitting force up to 600 t
2. Environmental Friendliness
3. Economic Efficiency
4. Can be used anywhere
5. Easy to use and transport
2. Environmental Friendliness
3. Economic Efficiency
4. Can be used anywhere
5. Easy to use and transport
If you want to learn more details about this, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998
Application of ZT250 Rock Splitting Machine
Hydraulic splitting machine, also known as hydraulic splitting machine, rock splitting machine, large splitting gun, or hydraulic rock splitting machine. The main principle of the airborne splitting machine is to increase the output pressure of the excavator through a booster, drive the oil cylinder to generate driving force, and after mechanical amplification, produce a splitting force of 5000 tons, causing the split object (such as rock, reinforced concrete, etc.) to crack in the predetermined direction. Mainly used for the splitting and disintegration of rocks, as well as the crushing and demolition of reinforced concrete structures such as buildings and road surfaces. Compared with traditional splitting and dismantling equipment such as hydraulic breakers, it is noise-free, vibration-free, and very efficient.
The splitting machine is designed using the principle of wedge blocks, with simple operation and no need for skilled workers. It is a standard version of the splitting machine.
The splitting machine is designed using the principle of wedge blocks, with simple operation and no need for skilled workers. It is a standard version of the splitting machine.
ZT250 Rock Splitting Machine - Packaging
About us
Shaanxi Zhongtuo Mining Equipment Co., Ltd. is a supplier of ROCK SPLITTER products integrating R&D, manufacturing, sales and service. We have an advanced production base and a complete supply chain system. By providing more efficient and safer products, we can We can ensure product quality and safety, reduce cost waste, and reduce safety risks, and promote the intelligent process of the global ROCK SPLITTER industry. Products include Piston rock splitter, Large rock splitter, Handled rock splitter, Hydraulic rock drill & splitter, Co2 rock breaking system and other mining equipment etc. Our goal is to create a one-stop ROCK SPLITTER solution.
Our Factory:
FAQ
1. Q: How can you guarantee quality?
A: We have a perfect pre-sales service and after-sales service system. We will start to track the whole process from
the factory production, and there will be a service specialist to provide you with exclusive service, so as to ensure
that there is no problem in the entire order process.
2. Q: Do you provide samples?
A: Yes, sample orders are welcomed.
3. Q: Do you provide OEM&ODM service?
A: Yes, we provide OEM&ODM service for most of our products. Please contact our sales manager for details.
4. Q: What can you buy from us?
A: Piston rock splitter, Large rock splitter, Handled rock splitter, Hydraulic rock drill & splitter, Co2 rock breaking system and
other mining equipment.
If you have any needs, you can contact our sales managers. We will find the best solution for you.
5. Q: Are the products in stock?
A: For most products, we have inventory and will arrange delivery in time. For large orders, we will calculate
the delivery time accordingly and communicate with you.
