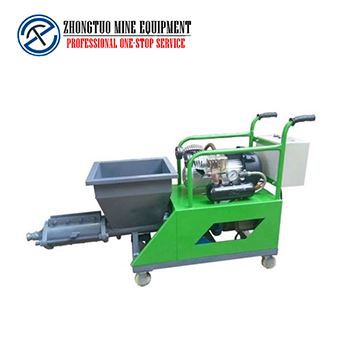

Mortar Spraying Machine Mortar Plastering Machine
Product Description
Type: Shotcrete
Machining Process: Vacuum
Productivity: 0.9m3/Hour
Vibrating Amplitude: 2.6mm
Condition: New
Spraying Capacity: 0.9m3/Hour
Voltage/Hz: Customized
Horizontal Plastering Distance: 30 M
Air Consumption: 150-600 L/Minute
Trademark: HT
Shotcrete Type: Mortar
Structure: Spiral Type
Feeding Height: 15m
Certification: ISO9001: 2000
Color: Yellow
Working Pressure: <=4MPa (Adjustable)
Vertical Plastering Distance: 15 M
Displacement: 15 L/Minute
Max Aggregate Diameter: 2mm
Origin: China
Mortar Spraying Machine Mortar Plastering Machine :
1 Can spray putty, diatom mud, K11, 911, penetration crystallization, polyurethane, JS, cement, and asphalt waterproofing coating materials, continuous and stable, no impulse.
2. Comes with special air compressor, compact and lightweight, simple operation.
3. Patented nano-ceramic technology, super wear-resistant, durable.
4. Patented universal transmission technology, energy-saving, noise reduction, shock suction.
5. Patented worm boosting technology, passive boost, easy adjustment.
6. Patented double helix rotor curve meshing technology, greater displacement, higher pressure, and less energy consumption.
7. Patented adjustable stator technology, easy to adjust the pump pressure, prolong the service life to 3 - 5 times.
8. Patented sealing technology, no leakage, clean construction, put an end to pollution waste, maintenance-free.
9. Patented specially made conjoined gear motor, small power, great strength, ultra-low energy consumption.
10. Equipped with a special type of paint spraying gun, can spray thick viscous slurry, and spray evenly.
Technical Specifications :
Model | BP-05 |
| Max Aggregate Diameter | 2MM |
| Spraying Capacity | 0.9M3/Hour |
| Displacement | 15 L/Minute |
| Air Consumption | 150-600 L/Minute |
| Working Pressure | <=4Mpa (Adjustable) |
| Plastering Distance | Vertical:15M |
| Horizontal:30M | |
| Power | 1.5KW |
| Voltage | 380V(Industrial Electricity) |
| 220V(Civil Electricity) | |
| 110V(Civil Electricity) | |
| Weight | 120Kg |
| Dimension | 1300x450x1000MM |
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are an original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally, it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow, etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment
