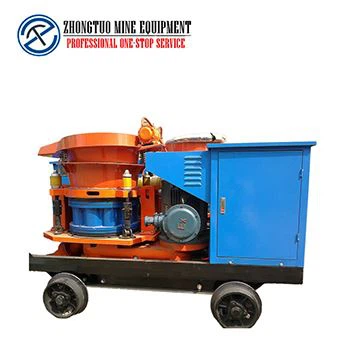

Wet Cement Concrete Spraying Rotor Shotcrete Equipment
Description of shotcrete machine
The accelerated agent conveying is an independent system, which accurately controls and adjusts freely through the standard metering pump. The swirler upper shell sets a special rubber chamber, which is beneficial for mixture conveying through air pressure vibration with non-stick material and a smooth internal wall. The machine has advantages of stable performance, easy operation, and maintenance, energy saving, long service life, and environment friendly to improve shotcrete layer quality.
Feature of shotcrete machine
YGM series wet concrete shotcrete machine is the ideal equipment for concrete anchor shotcrete construction.It is widely applicable in
tunnels,
underground engineering,
coal mining, mine shaft,
water conservancy
power engineering
slope protection,
soil nail wall project and
anchor shotcrete support construction.
Technical parameter of shotcrete machine
Dry shotcrete machine
| 1 | Model | YGM-DS5P | YGM-DS7P |
| 2 | Capacity (cubic m/h) | 5 | 7 |
| 3 | Tube Diameter (mm) | 51 | 57 |
| 4 | Discharge Head (Horizontal) | 200m | 200m |
| 5 | Max Aggregate (mm) | 20 | 20 |
| 6 | Compressed Air Consumption | 10-15m3/min | 10-15m3/min |
| 7 | Air Pressure (map) | 0.4-0.6 | 0.6-0.8 |
| 8 | Motor Power(kW) | 5.5 | 7.5 |
| 9 | Rotor Diameter (mm) | 438 | 480 |
| 10 | Weight (kg) | 850 | 950 |
Wet shotcrete machine
| 1 | Model | YGM-WS5P | YGM-WS7P |
| 2 | Capacity (cubic m/h) | 5 | 7 |
| 3 | Tube Diameter (mm) | 51 | 57 |
| 4 | Discharge Head | 50m(Horizontal) 20m (Vertical) | 50m(Horizontal) 20m (Vertical) |
| 5 | Max Aggregate (mm) | 15 | 15 |
| 6 | Compressed Air Consumption | 7-10m3/min | 7-10m3/min |
| 7 | Air Pressure (map) | 0.2-0.6 | 0.2-0.6 |
| 8 | Motor Power(kW) | 5.5 | 7.5 |
| 9 | Hopper Feeding Height (mm) | 1000 | 1250 |
| 10 | Weight (kg) | 720 | 830 |
| 11 | Dimension(mm) | 1350*750*1150 | 1400*750*1300 |
Our services
1. Any inquiries will be replied to within 12 hours.
2. Professional manufacturer, Welcome to visit our factory at any time.
3. High quality, fashion designs, reasonable & competitive price, and fast lead time.
4. Protection of your sales area, ideas of design, and all your private information.
5. Shipping: We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, and China air post. You also can choose your own shipping forwarder.
packaging &shipping
1. Packaging: 1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
