Description:

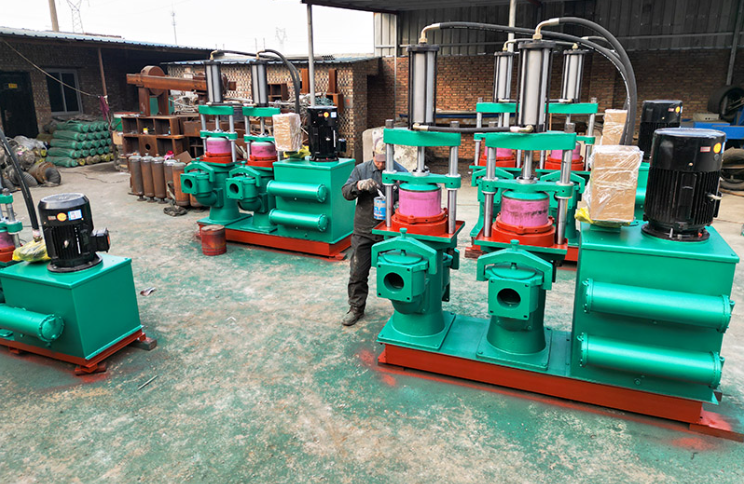

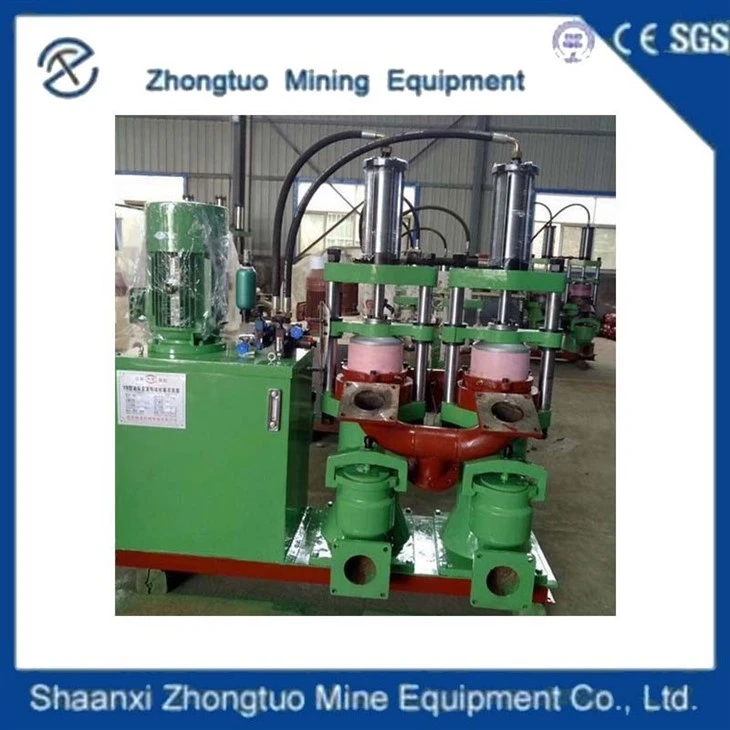

Yb Slurry pump is commonly used in exploration, mining metallurgy, petroleum, chemical, construction, and other industries. It is used for transferring abrasive sludge and flushing water. ordinary type is a ceramic plunger and ceramic piston type.
Feature:
1. it can handle abrasive sludge and is ideal for high viscosities.
2. it is a variable pump with seven familiar series of YB85-YB400.
3. Flow can be from 3-120m3/h, and the pressure of the special pump for filter press is 0-2Mpa.
4. special plunger pumps can be designed and manufactured according to customer needs.
The High-Pressure Sewage Sludge Treatment Hydraulic Slip Mud Pump is a versatile pump that can be used in a variety of industries, including exploration, mining metallurgy, petroleum, chemical, construction, and more. This pump is specifically designed to handle abrasive sludge and is ideal for high viscosities. It features a ceramic plunger and ceramic piston type and is available in seven familiar series of YB85-YB400. The flow can be adjusted from 3-120m3/h, and the pressure of the special pump for filter press is 0-2Mpa.
In addition, special plunger pumps can be designed and manufactured according to customer needs. The pump comes equipped with various features, including Mud Pump, Plunger Pump, Water Treatment, Submersible Sewage Pump, Slurry Pump, Water Pump, pressure washer pump, hydraulic pump, car washer pump, water purifier, spare parts, pump, chemical, filter, engine parts, water filter, high-pressure pump, submersible pump, centrifugal pump, and oil pump.
To select a suitable type and model, customers should consider the working conditions and medium, with no particles larger than 0.5 mm. With its wide range of features and adaptable design, the High-Pressure Sewage Sludge Treatment Hydraulic Slip Mud Pump is the perfect solution for transferring abrasive sludge and flushing water in a variety of industries.
Yb Hydraulic Mud Pump Parameter
| Model | Pressure range(Mpa) | Rated flow(m³/h) | Effective stroke(mm) |
Motor power(kW) | Inlet(mm) | Outlet(mm) | Weight(KG) |
| YB-85 | 0.1-2.5 MPa | 3 | 220 | 4 | 58 | 58 | 550 |
| YB-140 | 0.1-2.5 MPa | 11 | 220 | 11 | 89 | 76 | 950 |
| YB-200 | 0.1-2.5 MPa | 19 | 220 | 18.5 | 108 | 89 | 1250 |
| YB-250 | 0.1-2.5 MPa | 30 | 220 | 22 | 133 | 108 | 1750 |
| YB-300 | 0.1-2.5 MPa | 45 | 220 | 30 | 159 | 133 | 2200 |
| YB-300 (prolonged) |
0.1-2.5 MPa | 60 | 350 | 37 | 159 | 133 | 2850 |
| YB-350 | 0.1-2.5 MPa | 100 | 420 | 55 | 219 | 159 | 5250 |
| YB-400 | 0.1-2.5 MPa | 120 | 420 | 55 | 219 | 219 | 5850 |
| YH-85 | 0.1-2.5 MPa | 3 | 220 | 2.2 | 58 | 58 | 550 |
| YH-140 | 0.1-2.5 MPa | 11 | 220 | 5.5 | 89 | 76 | 950 |
| YH-200 | 0.1-2.5 MPa | 19 | 220 | 7.5 | 108 | 89 | 1250 |
| YH-250 | 0.1-2.5 MPa | 30 | 220 | 11 | 133 | 108 | 1750 |
| YH-300 | 0.1-2.5 MPa | 45 | 220 | 18.5 | 159 | 133 | 2200 |
| YH-300 (prolonged) |
0.1-2.5 MPa | 60 | 350 | 22 | 159 | 133 | 2850 |
| YH-350 | 0.1-2.5 MPa | 100 | 420 | 37 | 219 | 159 | 5250 |
| YH-400 | 0.1-2.5 MPa | 120 | 420 | 37 | 219 | 219 | 5850 |
If you want to learn more details about this machine, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998
How to select a suitable type and model:
1. According to the working conditions and medium, No particles larger than 0.5 mm are allowed in the medium conveyed
by the plunger pump, otherwise it will cause work failure. If the material is neutral, choose an ordinary gray cast iron;
plunger pump, and if the material is with iron pollution, choose a 304 stainless steel plunger pump, anti-corrosion vinyl
plunger pump should be used for strong acid or alkaline corrosion;
2. Determine a reasonable flow range. The nominal flow rate of the plunger pump model is the rated flow and the
appropriate margin range should be considered during application;

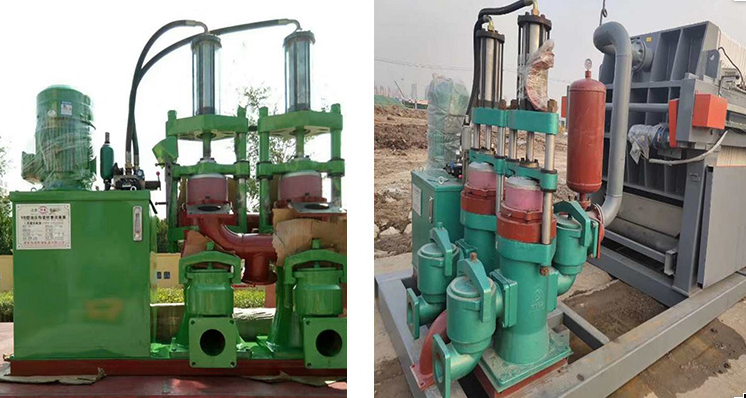

3. Determine the applicable pressure level. The rated pressure of the plunger pump can reach 2.0Mpa. When matching the
filter press, a variable frequency pump, or a full-frequency automatic variable plunger pump should be used first, and a
A low-pressure pump should be used for pulping to reduce waste; After the parameters, select the YB series ceramic plunger pump
according to the standard model.
