Description
|
BW160 Model Piston Mud Pump for Drilling Rig is a horizontal triplex reciprocating single-acting piston pump that offers four flow rates and four pressures, ensuring a wide range of flow and pressure variations.
Designed with multiple shifts, the BW160 Piston Mud Pump allows for flexible speed and displacement adjustment. Its compact structure and lightweight design make it not only energy-saving but also highly effective and durable in use.
|
|
BW 160 Mud Pump Features
|
|
1. The mud pump is a horizontal triplex reciprocating single-acting piston pump with four flow rates and four pressures, with a wide range of flow and pressure variations.
|
Applicable fields OF BW 160 Mud Pump
BW piston mud pump is extensively utilized in industries including geology, coal, building, metallurgy, chemicals, railway, water conservancy, oil, and other fields.
If you want to learn more details about this machine, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998

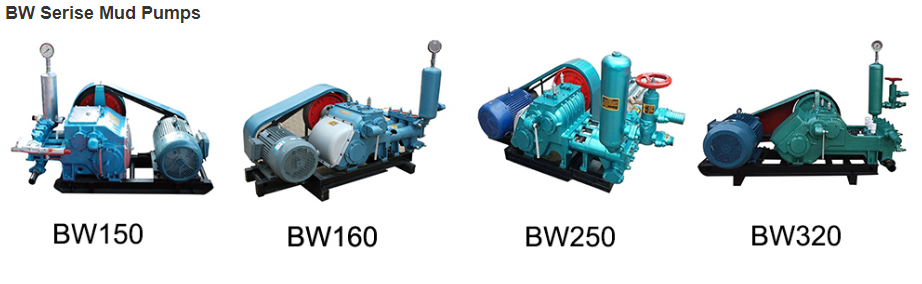

Technical Parameter of BW Mud Pump
| Model | BW150 | BW160 | BW250 | BW320 |
| Cylinder Diameter (mm) | 70 | 70 | 65/80 | 80 |
| Stroke (mm) | 70 | 70 | 100 | 110 |
| Pump Speed (t/m) | 57-183 | 55-200 | 42-200 | 78-214 |
| Flow Rate (l/m) | 38-125 | 44-160 | 35-250 | 118-320 |
| Pressure (Mpa) | 2.3-7 | 2.5-10 | 2.5-7 | 2.2-10 |
| Outlet Pipe Diameter (mm) | 32 | 32 | 51 | 51 |
| Inner Pipe Diameter (mm) | 51 | 51 | 76 | 76 |
| Power (kW) | 7.5 | 11 | 15 | 30 |
| Size (mm) | 1925*795*1150 (diesel motor) 1840*795*995 (electric motor) |
1450*745*970 | 1560*995*650 | 1905-1100-1200 |
| Weight (kg) | 560/630 | 430 | 650 | 720 |

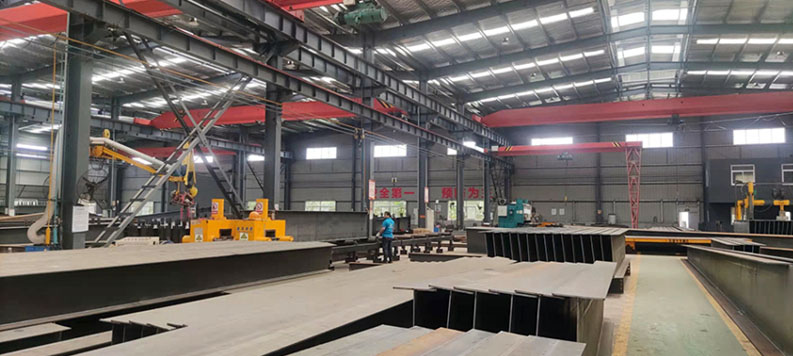

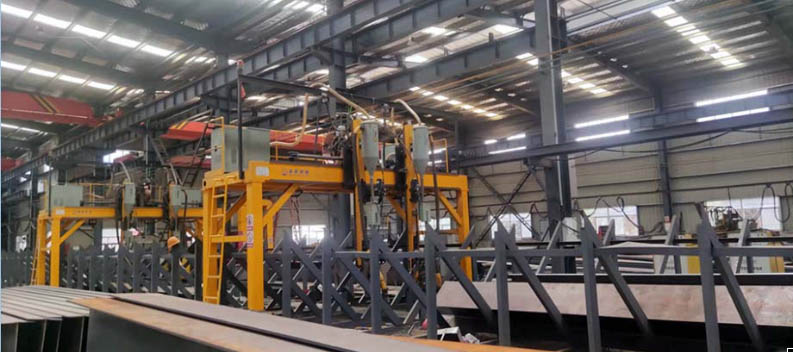

Company Profile
