Hydraulic Sludge Ceramic Plunger Pump|Application of Aluminum Alloy or Titanium Alloy in corrosion-resistant and Environmental Protection Wastewater treatment
A product description:

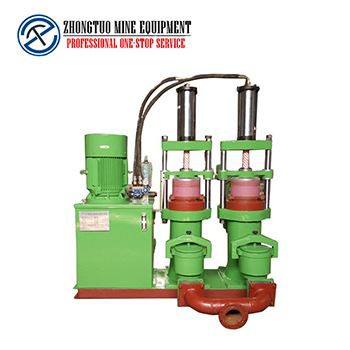

Hydraulic Sludge Ceramic Plunger Pump for vertical double cylinder porcelain piston pump. It is divided into two kinds quantitative and variable, is designed for pressure transmission mud type working medium designed. Quantitative pumps can be used in the spray dry noise tower and other pressure transmission fields; variable sludge piston pumps can be adapted to the filter press dehydration process to flow pressure changes.
To understand the performance of the YB filter press special energy-saving pump, first, understand the filter characteristics of the filter press:
1. Feeding stage: when the feed is started, the filter chamber of the filter press is empty and needs to be filled with materials quickly. (YB pump large flow feed quickly fills the filter press)
2. Pressure-increasing filtration stage: When the pressure of the filter press is filled with materials, the pressure begins to rise, and the filter press quickly discharges water. At this time, the filter press still needs a large flow of feed. (YB pump low pressure and large flow constant feed fast filtration) As the feed pressure gradually increases, the filter cake in the filter press begins to form and thicken, the water output of the filter press begins to decrease from large to small, and the filter pressure of the filter press also From large to small, the feed volume also decreases. (YBH pump output flow automatically changes from large to the small, hydraulic system, no overflow, smart energy-saving operation.)Hydraulic Sludge Ceramic Plunger Pump
3. Pressure-maintaining filtration stage: the filter pressure of the filter press rises to the highest set pressure, the feed pressure is required to maintain constant pressure filtration, and the filtration capacity of the filter press is further reduced until the filtration is completed. (The flow rate of the YB pump is reduced to a minimum and starts to maintain a constant pressure feed. The hydraulic system has a very small amount of overflow.)
When the Hydraulic Sludge Ceramic Plunger Pump starts to feed the filter press and low-pressure filtration, the large flow rate remains unchanged. As the pressure of the filter press cavity is filled with material, the filter press's filtering capacity begins to decrease. When the set value is reached, the hydraulic system controls the YBH pump The running speed decreases, and the output flow rate decreases. The filter pressure of the filter press gradually decreases, the feed pressure gradually rises, and the feed flow of the pump automatically decreases. The minimum flow is 20% of the rated flow. The pump output flow pressure curve basically coincides with the best filter curve of the filter press. Therefore, the whole process is highly efficient and energy-saving, with more than 60% more energy saving than ordinary pumps.
Specification of Hydraulic Sludge Ceramic Plunger Pump:
