Working performance:

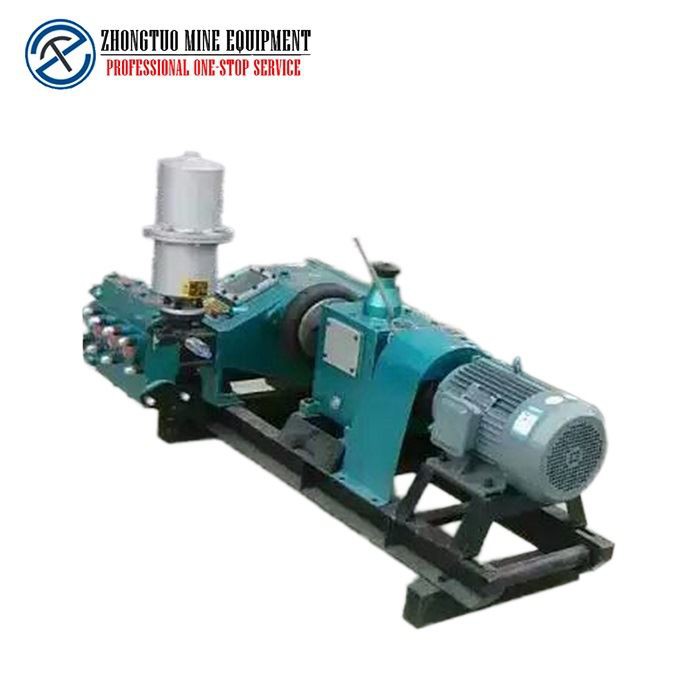

1. Bw150 Mud Pump of hydraulic grouting pumps are professional grouting equipment, which can realize single liquid grouting and double liquid grouting.
2. Due to the use of full hydraulic pressure, small size, and lightweight, it is suitable for a wide range of construction.
3. The adjustable performance is relatively good: the pump's pressure displacement can be arbitrarily adjusted within the design range. When the pressure exceeds the allowable pressure, the overflow valve will automatically open, and the oil cylinder and working cylinder stop working, which plays a safety role.
4. Inflammable and explosive construction sites such as coal mines, this series of hydraulic grouting motors use explosion-proof motors and can also be used safely.
5. There is an anti-seismic pressure gauge in the hydraulic system, which can accurately reflect the working state of the pump.
6. This series of hydraulic grouting pumps can also be used as a clean water pump, sewage pump, and mud pump.
Technical Parameter
Contact: Summer
Mobile/Wechat/Whatsapp: +86 13571973823
Email: summer@ztmineequipment.com
Details

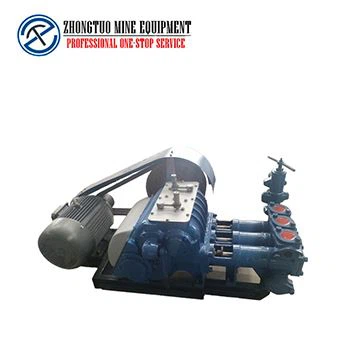

1. BW150 grouting pump is a horizontal three-cylinder reciprocating single-acting piston pump, which is mainly used for grouting construction of roads, bridges, dams, mines, and high-rise buildings.
2. Eight different working pressures and flow rates can be changed, and it is suitable for conveying flushing fluid (mud, water, saponification fluid) to the borehole in geological core drilling engineering, and diamond drilling with a diameter of fewer than 1500 meters. It can also be used for medium and low pressure, cement slurry injection, The pump consumes less energy, operates flexibly, and is easy to maintain.
Preparations before starting the pump:
After the grouting pump has been out of use or reinstalled for a long time, the following preparations must be carried out before starting:
1. Check whether the lubricating oil of each part is sufficient.
2. Check whether the suction pipe of the water filter is unobstructed.
3. Check whether the movement of each moving part is blocked.
4. Check whether the speed change of each speed change mechanism is accurate and reliable.
5. Check whether the fasteners are loose, especially whether the rubber piston pressing lock nut and the connecting thread between the crosshead and the piston rod are tightened.
6. Check the water absorption height of the pump. In an area within 1000 meters above sea level, the water absorption height of the pump should not exceed 2.5 meters. In the area above 1000 meters above sea level, the suction height of the pump should be reduced according to the degree of local atmospheric pressure reduction.
7. Check the position where the water filter is immersed in the mud pool. Generally, it should be below the mud level of 0.3-0.5 meters, and the water filter should be no less than 0.5 meters away from the bottom of the mud pool.
Application field
1. The earth dam of the reservoir channel, the dam body of the earth-rock dam, the cracks and lose layers of the dam foundation and the injection of cement mortar such as karst caves and faults for water blocking.
2. Mortar bolt injection of bolt and shotcrete support project.
3. The pouring of cement mortar in tunnel engineering.
4. Infusion of cement mortar for underground diaphragm wall.
5. Mortar pouring at the junction of highway roads and bridges.
6. High-level or long-distance transportation of other high-viscosity solid-liquid mixture materials
Zhong Tuo
Shaanxi Zhongtuo Mining Equipment Company was founded in 2005 in Xi'an, Shaanxi Province,
It is a foreign trade company specializing in the research, development, and sales of machinery and equipment in the fields of mining, bridge, pavement, and tunnel.
Entire Service
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
