overview
|
(quick details) |
||
|
Condition: new |
Power type: |
Place origin: Shannxi China(mainland) |
|
Brand name: ZTmining equipment |
Weight: |
character: 2 ceramic working up and down |
|
Certification: SGS ISO |
Warranty: 1year |
After service: no overseas services, but video technical support and spare parts. |
|
Voltage:220-440 |
Color: as you require |
Driven way: hydraulic driven |
|
Product name: YB series |
No of cylinder: 6 |
main material: cast iron |
|
|
function: pump slurry to filter press or spray tower |
|
parameter:
|
model
|
flux (m³/h) |
pressure (a) |
motor power(kW) |
dimension (L*W*H) |
weight (kg)(m³/h) |
|
YB-85
|
3 |
2
|
4
|
1230*850*1600
|
482
|
|
YB140
|
10
|
2.5
|
11
|
1600*1200*1900
|
870
|
|
YB-200
|
19
|
2.5
|
18.5
|
1700*1300*1200
|
1127
|
Supply Ability:
1000 pieces per month the electric concrete scrabbler for sale
Packaging & Delivery
Packaging Details
wooden case or as your requirement
Port
typically board in ShangHai or for your convenience
Lead time
shipped less than 7 business days after we agreed on our cooperation

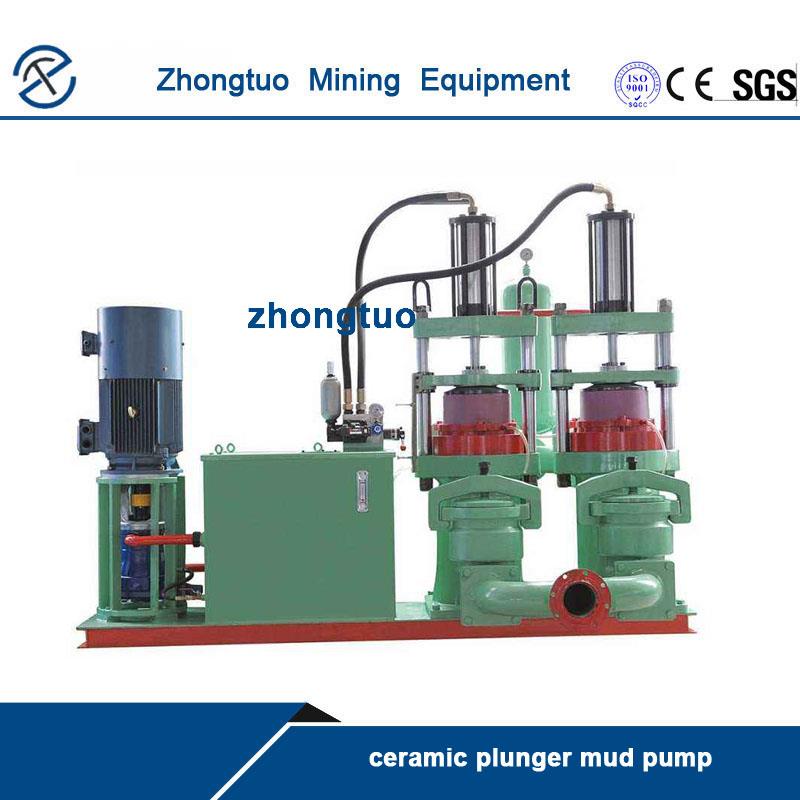

Product picture
Contact information:
Summer
Mobile/Wechat/Whatsapp: +86 13571973823
Email: summer@ztmineequipment.com
1. Generally we provide three kinds of ceramic piston pumps for foreign clients unless you suppose to order some special size we can make it as your will.
2. High-Pressure Ceramic Piston Pump Main Applications:
The series of YB ceramic piston pumps are mainly used to transport suspension liquid of ceramic slurry, coal water slurry, kaolin, and non-metallic mines. They can also be used in the food industry, chemical industry, and so on.
3. High-Pressure Ceramic Piston Pump Main Characteristics:
Hydraulic-driven, two ceramic plungers working up and down
The highest feeding pressure could be 2.5Mpa, the rate pressure is 2.0Mpa, and the pressure could be adjusted.
Pistons are made of alumina ceramics, of great abrasion resistance and corrosion resistance
Using a combined seal, good sealing efficiency
FAQ
1. Q: Are you a trading company or manufacturer?
A: We are an original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally, it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow, etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment
