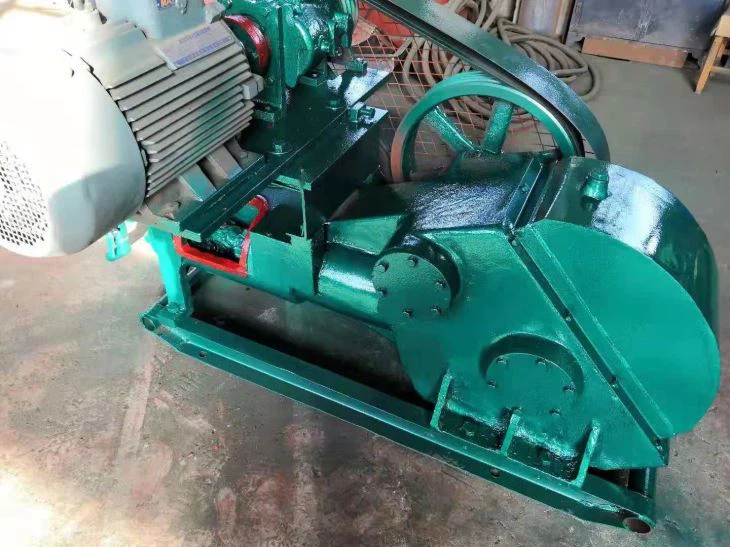

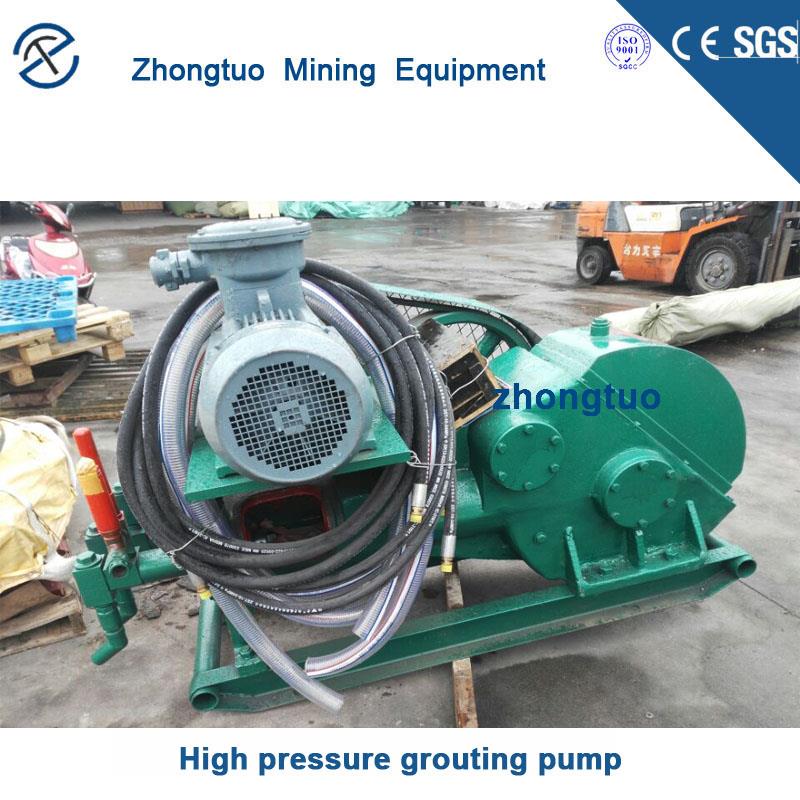

Description of Piston Mud Pump
Mud pumps serve as the heart of the mud circulating system. Reciprocating piston pumps (also called slush pumps or power pumps) are widely used for drilling oil and gas wells. The advantages of the reciprocating positive-displacement pump include the ability to move high-solids-content fluids laden with abrasives, the ability to pump large particles, ease of operation and maintenance, reliability, and the ability to operate over a wide range of pressures and flow rates by changing the diameters of the compression cylinders (pump liners) and pistons.
Technical Parameter
|
Type |
Single piston double acting with balls in the valve plate |
|
Clutch |
Dog clutch |
|
Pressure |
20 bar |
|
Stroke |
85mm |
|
Speed |
180rpm |
|
Suction port |
51mm |
|
Delivery port |
42mm |
|
Liner bore diameter |
75mm |
|
Transmission |
Pulley &vee belt |
|
Mounting |
Skid-mounted |
|
Flow |
130L/min |
|
Engine |
5.5kw(electric motor) ; 10HP(diesel engine) |
|
Weight |
260kg |
|
Dimensions |
1680*570*980mm |
Contact information:
Summer
Mobile/Wechat/Whatsapp: +86 13571973823
Email: summer@ztmineequipment.com
How to choose a cement grouting pump
(1) The grouting pump should have a large adjustment range of slurry discharge, and the change between the final grouting amount and the grouting initial amount is about 8~10 times. The final amount of grouting is small, which proves that it is good to fill and compact.
(2) The grouting pump should have reliable pressure control capability. Because the grouting "filling and compacting" will inevitably form the overpressure of the grouting pump, the pump should reduce the amount of slurry in time to reduce the flow resistance of the slurry in the gap, thus avoiding grouting and fracturing and pavement bulging. , mechanical accidents, etc. The grouting pump preferably has the property of automatically adjusting the amount of slurry as the grouting pressure changes.
(3) The grouting pump should be easy to operate and maintain, safe, and reliable to use.
FAQ
Q1: Are you a trading company or a manufacturer?
A: We are a factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of the total price should be paid by T/T as a down payment; 70% balance payment should be paid by T/T before delivery.
Q4: Do you have a CE certificate for your concrete pump?
A: Yes, we have. Both are our patent products, certificated by CE.
