Description:

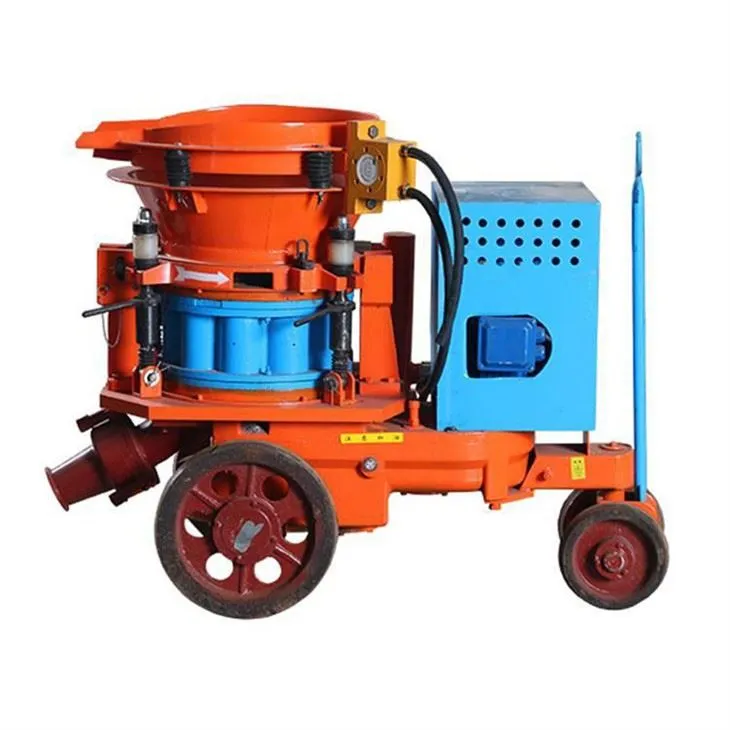

The machine is mainly driven by a motor, reducer, rotor assembly, sealing plate, rubber plate, compactor mechanism, hopper seat, mine wheel, vibration hopper, compression mechanism, air Systems and electronic control devices, and other components. The motor shaft ends the drive gear shaft and, after decelerating by the gear unit, drives the rotor mounted on the output shaft to rotate.
Technical Parameter:
| Model | Pz-5 | Pz-6 | Pz-7 | Pz-5D | Pz-6D |
| Capacity m3 | 5 | 6 | 7 | 5.5 | 6 |
| Power kW | 5.5 | 5.5 | 7.5 | 5.5 | 5.5 |
| Pressure Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.2-0.4 | 0.2-0.4 |
| Pipe Inner Diameter | Φ51 | Φ51 | Φ51 | Φ51 | Φ51 |
| Water-cement Ratio | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
Advantages:
1. Straight-through rotor type non-bonding material cavity, smooth discharge, high efficiency, and save time;
2. Four-point elastic compensation compression, good sealing effect, less dust beside the machine, and long life of wearing parts;
3. Adopt low-pressure high-speed vortex air conveying to overcome the problems of sticking, pipe blocking, and pulse separation during material conveying, and the material flow is uniform;
4. Continuous and stable new type of sprinkler head, discharge elbow device, improve spray effect, less rebound, high quality of spray layer.
Application:
Dry spray cement sprayer machine is widely used in building wall spraying, slope protection, tunnel construction, and other places where there is no harmful gas and concrete spraying is required. Construction of engineering buildings, mines, tunnels, culverts, subways, hydropower projects, underground projects and sprayed concrete construction of roadways in coal swamp mines; various types of industrial furnaces, refractory linings of furnace linings are sprayed and formed or repaired; during slope protection and greening construction, soil Delivery and jetting.
Shaanxi Zhongtuo Mining Equipment Co., Ltd. is a global supplier specializing in bridge stretching equipment, downhole drill series, steel processing machinery, rock splitting equipment, grouting equipment, and pavement processing equipment.
If you have any related product requirements, please contact us.
