Description:

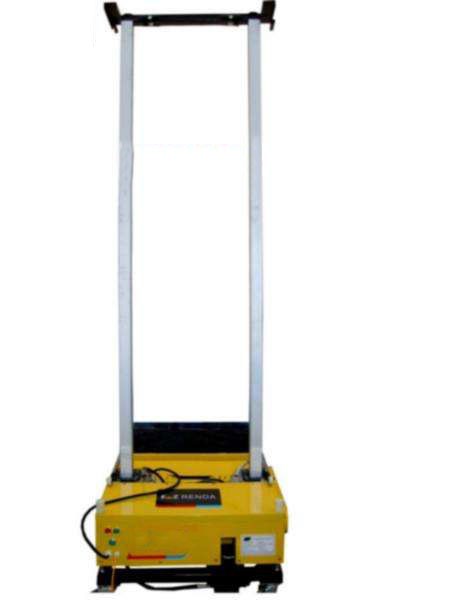

The plastering wall machine is designed to squeeze plaster, plaster thickness up to 0.2 - 3cm does not fall off, further strengthening the bond strength of the mortar and the wall, a dense degree more than the manual more than five times, an effective solution to the artificial plaster in mortar off and hollowing phenomenon.
Advantage:
1. The pole can be folded, and it is more convenient to enter and exit the door.
2. The new design is used to widen the aluminum alloy poles with good toughness and lightweight.
3. Adopt an automatic digital locator, with fast speed, and high precision.
4. The capacity of the ash bucket is increased by 3 times, the trolley can be directly ashed, no ash is added in the middle, and the ash is directly plastered to the top.
5. Three-vibration motor design eliminates the phenomenon of air bubbles on the wall surface.
6. With the rack climbing method, the rise and fall are more stable.
7. One-second positioning technology, positioning is faster and more convenient.
8. Double digital locator, the left and right poles are positioned more accurately at the same time.
Technical Parameter:
Model | ZT-800 |
Size | 800 *650 * 500mm |
Voltage | 380/220V (optional) |
Wall plastering height | 3.5m |
Wall plastering thickness | 5~30mm |
Work efficiency | 400㎡/day |
Power | 1.5KW |
Weight | 110kg |
Host package size | 1.05 * 0.9 * 0.9m |
Packing size of accessories | 2.6 * 0.3 * 0.32m |
Application:
The mortar plastering machine is fully automatic rendering with perfect smooth rendering surface, no need manual leveling jobs. It saves labor cost, materials and time widely used for brick wall, cement wall, internal wall, house, workshop, house, building, skyscraper projects.
Cleaning & Maintenance
Thorough cleaning and immediate maintenance will make the trowel look new every day, and regular maintenance and cleaning will prolong the service life of the trowel.
the cleaning method:
Flushing focus: inside and outside the conveyor belt, vibrator, before and after the formwork, ash hopper, hydraulic casing, climbing wheel, caster, and surface flushing. 1. There is sand ash on the pole, use a woven bag to wash it up and down with water. 2. There is sand and ash on the nylon wheel. Pull out the pole, use hydraulic pressure to punch out two sleeves, and wash them with high-pressure water.
Wall machine maintenance
The guide column in the oil window, the movable part of the wiper plate turning rod, the clutch plate of the electromagnetic clutch, the hydraulic sleeve, the chain, the steel wire rope, and all the solid wires should be oiled once a day.
