Description:

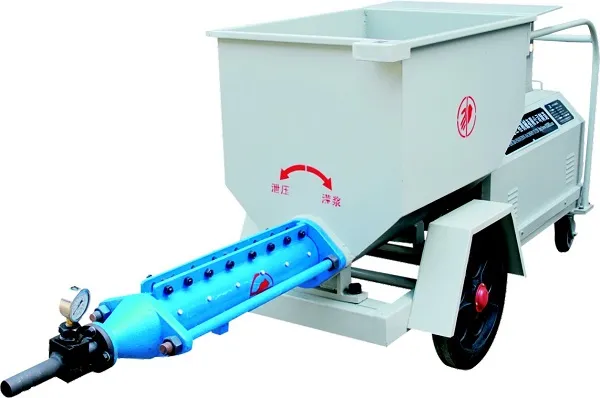

Mortar Grout Spraying Plaster Machine has a novel structure and unique conception, it adopts the integrated design of a spiral belt rolling mixer and conveying grouting/grouting pump, with a compact structure, using the principle of stator/rotor booster screw type, stable pressure without a pulse, smooth pumping and grouting, high quality Stable and reliable.
Parameters of Mortar Grout Spraying Plaster Machine:
| Power (KW) | 5.5 |
| Flow rate (M3/H) | 2.5 |
| Maximum pressure (Mpa) | 5 |
| Conveying distance (m) | 50 |
| Conveying height (m) | 20 |
| Sand (or aggregate) particle Diameter (mm) | ＜3 |
| Hopper Volume( L) | 220 |
| Weight (kg) | 340 |
| Size (mm) | 2300*800*1240 |
Features:
1. The integrated grouting pump wheel design is easy to move, easy to operate, and easy to use and maintain later.
2. The stirring and grouting integrated grouting pump has strong practicability for construction sites and has a wide range of adaptability to pumping cement slurry, thick slurry, and mortar.
3. The stator rubber sleeve and the rotor in the main components of this type of grouting pump are wear-resistant and have high machining accuracy, and the two have good meshing interference fit matching.
4. The grouting equipment is suitable for the flowable thick slurry with a water-cement ratio greater than 0.3, and both thin slurry and thick slurry can be well adapted.
5. Imported materials are used in the key parts of the grouting pump, which effectively prolongs the service life of the wearing parts.
6. This type of grouting pump with stirring has a wide pressure range, and the pressure can be adjusted at will according to requirements.
