Hydraulic Mud Slurry Filter Press Transmission Plunger Pump

1 hydraulic drive, dual-cylinder double-acting, high flow, high head;
2 running balance, long continuous work, strong reliability;
3 small noise, the pressure can be adapted to a large pressure range, the pressure fluctuation is small;
4, can be used in high wear and tear acid corrosion areas.
5 to create the best products and services based on talent and technology

Description of Hydraulic Mud Slurry Filter Press Transmission Plunger Pump:

A mud pump or drilling mud pump is used to circulate drilling mud on a drilling rig at high pressure.
The mud is circulated down through the drill string, and back through the annulus at high pressures.

Ceramic plunger mud pump for vertical double cylinder porcelain piston pump. It is divided into two kinds quantitative and variable, is designed for pressure transmission mud type working medium designed. Quantitative pumps can be used in the spray dry noise tower and other pressure transmission fields; variable sludge piston pumps can be adapted to the filter press dehydration process to flow pressure changes.

ceramic plunger mud pump part of the cylinder, porcelain plunger, sealed packing, into and out of the slurry valve, air regulator tank, and other components.

Power cylinder and piston pump through the guide rod, piston rod, and beam into one, as part of the main part of the hydraulic transmission system, one-way travel valve (fuel valve), and the collision with the host.

The fuel tank is composed of the fuel tank, oil pump, manifold, and other parts. The electric box is

attached to the fuel tank. The hydraulic oil is equipped with a cooler in the circuit, and the oil-cooled with water.

Two oil cylinders in series, relying on the fuel system to ensure that the cylinder piston action is accurate and stable.

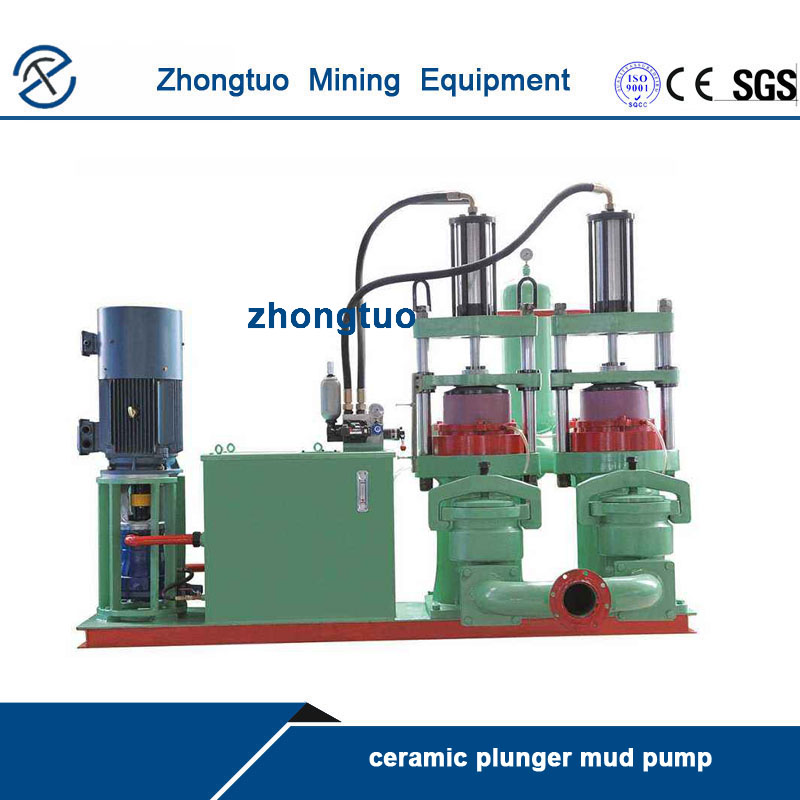

The pump is hydraulically driven and consists of the electrical box part, the tank part, the power cylinder, and the ceramic plunger in the overall structure (see figure).

ceramic plunger mud pump06.jpg

Parameters of Hydraulic Mud Slurry Filter Press Transmission Plunger Pump:

Model	Pressure range	Rated Flow	Effective stroke	Motor Power	Oil Pump	Inlet/Outlet	Remark
YB-85	0-2.5MPA	3m3/h	220mm	4kw	CQB-F425	57mm-57mm	Suitable for 50m2 filter press
YB-140	0-2.5MPA	11m3/h	220mm	11kw	CQB-F563	89mm-76mm	Suitable for spray tower or 80 square filters press
YB-200	0-2.5MPA	19m3/h	220mm	18.5kw	CQB-F573	108mm-89mm	Suitable for spray tower 4000 or above or 100 square filter press
YB-250	0-2.5MPA	30 m3/h	220mm	22kw	CQB-F573	133-108mm	Suitable for spray tower 5000 or above or 150 square filter press or slurry conveying
YB-300	0-2.5MPA	45 m3/h	220mm	45kw	CQB-J2100	159mm-133mm	Suitable for spray tower 8000 or more than 200 square meters or more filter press or slurry conveying
YB-300 Lengthen	0.1-2.5MPA	70m3/h	350mm	37kw	CBGJ-3140	159-133MM	Suitable for spray tower type 10000 or more than 250 square filter press or slurry conveying
YB-350	0.1-2.5MPA	100 m3/h	420mm	55kw	CBGJ-3160	219-159mm	Suitable for spray tower pouring or with 500 square filter press
YB-400	0.1-2.0MPA	120m3/h	420mm	75kw	CBGJ-3160	219-219mm	Suitable for spray tower pouring or with 800 square filter press
