Features

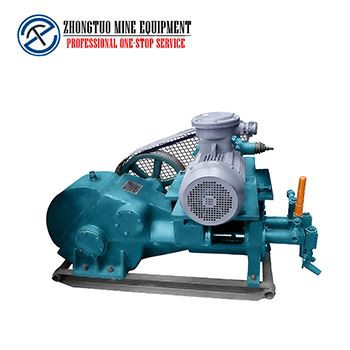

Double piston pump motor pump single acting for construction
Switch by a ball valve, Hydraulic hydraulic Mortar cement pump
Mechanical transmission, the lower failure rate
Integrate pump head and hopper; prevent eduction and deposition together with the paddle agitating
Compact structure, convenient for maintaining
High working pressure and working reliability
Convenient maintenance
Item | RG60-50 |
Cylinder Dia | φ90 mm |
Output | 60 L/min |
Pressure | 5 Mpa(50bar) |
Piston stroke | 145 mm |
Piston Speed | 82 /min |
Inlet diameter | 75 mm |
Outlet diameter | 50 mm |
Max.Aggregate.size | 6 mm |
Cement : Sand | ≥1:3 |
Dimensions | 1400×650×920 mm |
Weight | 700 kg |
Power unit | 7.5 kW(Electric)/10hp(Diesel) |
Note: Single or Double Passageway.Skid or Tyre | |
