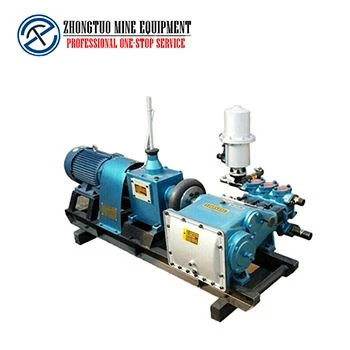

Description of BW150 mud pump for good drilling:
Mud pumps are typically positive displacement pumps, otherwise known as reciprocating pumps. Positive displacement pumps are able to provide a constant flow rate of fluid regardless of the pump's outlet pressure. Duplex, triplex, and quintuplex pumps are all used as drilling mud pumps.
Mud pump packages are driven either by an engine or motor. Depending on fuel and energy available on or near a drilling rig, electric motors or diesel engines are common. In some cases, natural gas or other fuel types may be used. Drilling mud pumps are packaged on skid-type units which allow for easy removal and transportation from site to site. Other methods are available but are less common.
A mud pump system generally includes a charge pump. Due to the high viscosity of the fluid, additional pressure is commonly needed on the inlet to the mud pump to prevent cavitation.
Parameters of BW150 mud pump for good drilling:
| Maximum flow rate | 150L/min |
| The maximum pressure | 70kg/cm2 |
| Drive power | 7.5kw |
| The diameter of the suction pipe | 50mm |
| Drainpipe diameter | 32mm |
| Weight | 560kg |
Before starting the mud pump, check whether there is any clogging in the inlet pipe and outlet pipe and whether the front and rear bearings are filled with butter, and check whether the packing is full. Mud pumps should be equipped with a high-pressure clean water pump to send clean water that is greater than the mud pump pressure to the leak-proof packing to protect the packing. When the mud pump is working, the flush pump must not be turned off. Otherwise, the seal part will be quickly worn. Whether the clearance between the impeller and the guard plate is reasonable has a great influence on the life of the mud pump. If the clearance is not reasonable, the vibration and noise will be generated when the pump is running, and the over-current components will be damaged quickly. Therefore, when replacing the impeller, attention should be paid to making the clearance meet the requirements of the drawings, and the gap adjustment can be performed through the adjustment screws on the rear bearing body. The allowable suction stroke of the mud pump is determined when the clean water is conveyed, and the effect of the mud on the sucking ability should be taken into account when pumping the mud.
You are buying = Our Products + Our Service :
1, Quality is our culture, strict QC/QA systems under GMP factory.
2, Fast and safe delivery with a secure and discreet shipment.
3, With us, your money is safe as well as your business. It's our promise to you!
4, For whatever questions about us or our products you may have, do let us know and you can be assured we reply to you in detail within 24 hours and to your satisfaction.
5, Warmly welcome your visit to our company if available.
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are an original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally, it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow, etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment
Hot Tags: bw150 mud pump for good drilling, manufacturers, suppliers, factory, wholesale, buy, cheap, low price
