YN27 Hand-held Internal Combustion Rock Drill
video
YN27 Hand-held Internal Combustion Rock Drill

YN27 Hand-held Internal Combustion Rock Drill

1. Model: Yn27c
2. Color: Yellow
3. Drilling diameter: 22mm
4. Piston stroke: 70mm
5. Impact Frequency: 34Hz
6. Drlling depth: 5mm/min

Contact: summer@ztmineequipment.com

Mobile/Wechat/Whatsapp: +86 13571973823

Features of the internal combustion rock drill:

YN27C internal combustion rock drill is suitable for rock drilling. If a few parts are replaced, they can be converted into a crusher and a compactor for crushing, shoveling, excavation, splitting, and compaction.

1. It is composed of a small gasoline engine, a compressor, and a rock drill;

2. The compressed air produced by itself blows the rock powder in the blasthole;

3. Small weight, easy to carry, suitable for areas with high mountains, no power supply, no wind pressure equipment, and large mobility areas;

4. Vertical horizontal rock drilling;

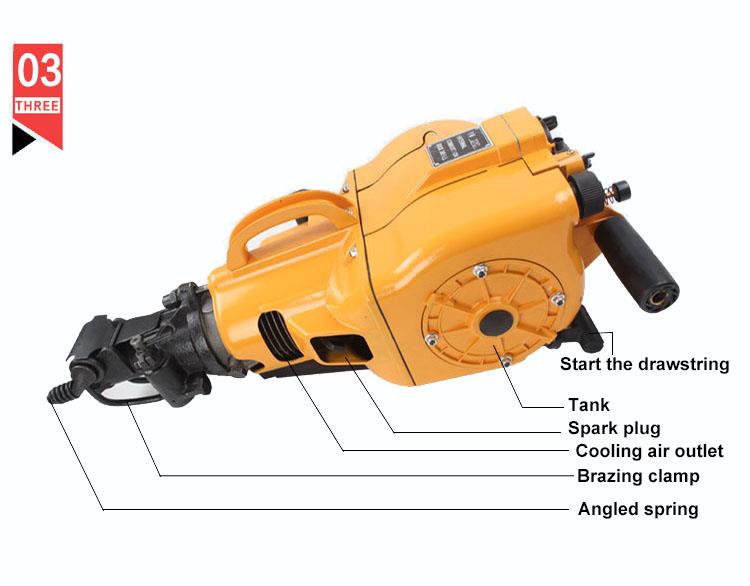

The details of the Internal Combustion Rock Drill:

Internal Combustion Rock drill Internal Cobbustion Rock Drill

Technical parameter



Weight 27KG Drilling diameter 22mm Piston stroke 70mm
Size 746*315*229mm Drilling depth 5m Engine speed >=2450r/min
Impact Frequency 34Hz Drilling Speed 5mm/min Impact energy >=25J

Features of YN27 hand-held internal combustion rock drill

1. YN27 hand-held internal combustion rock drill is a hand-held rock drilling tool composed of a small gasoline engine, a compressor, and a rock drill;

2. The machine is easy to operate, saves time and effort, and has the characteristics of fast chiseling speed and high efficiency;

3. The machine reaches the first-class level of similar products, and can completely interchange parts with similar international products;

4. The YN27 internal combustion rock drill can drill holes in rocks and can drill holes vertically downward and horizontally upward at less than 45°, and the deepest vertical downward drilling can reach six meters;

5. The host's weight is only 27 kg, and it is easy to carry. It is especially suitable for high mountains, areas without power supply and wind pressure equipment, and temporary projects with considerable mobility.

6. It can work no matter in high mountains or flat lands, no point in the extreme heat of 40° or the severe cold of minus 40°. This machine has wide adaptability.
