Drill Equipment Portable Air Compressor Hard Rock
video

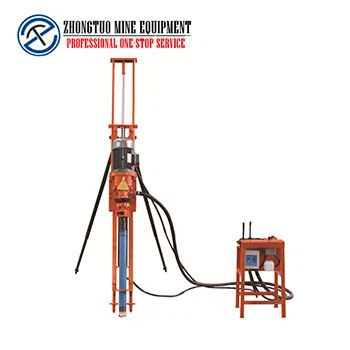

Drill Equipment Portable Air Compressor Hard Rock

Drill Equipment Portable Air Compressor Hard Rock

1.Drilling Diameter:50-130mm
2.Drilling Depth:15m-25m
3.Working Pressure:0.5-1Mp
4.Rotation Speed:110r/m
5.After-sales Service:Tracking Guidance & Service
6.Warranty:One Year

Working Principle:

The DTH rock drilling rig is to make the impactor dive into the hole during the rock drilling process to reduce the energy loss caused by the impact energy transmitted by the drill rod, thereby reducing the impact of the hole depth on the rock drilling efficiency.

1

Model

ZTD70

ZTQ70

ZTD100

ZTQ100

Drilling Diameter

50-90mm

50-90mm

90-130mm

90-130mm

Drilling Depth

≤15m

≤15m

≤25m

≤25m

Working Pressure

0.5-0.7Mp

0.5-0.7Mp0.5-1Mp0.5-1Mp
Rotation Speed

110r/m

110r/m

110r/m

110-160r/m

Drilling Pipe

Diameter

42mm

42mm

50-60mm

Length

1025mm

1025mm1025mm1025mm

Size

1740*260*420mm

1740*260*420mm

2280*400*550mm

2280*380*550mm

Features of DTH Drilling Rig

1. the hole drilling tools are widely used in mines, transportation, defense, water conservancy, and rock engineering, especially in rugged terrain.

2. Low center of gravity, easy to fold and move.

3. Rotator reducer with high torque ensure operating reliability in the case of strong vibrations or heavy-duty.

4. Simple structure, easy to operate, low cost.

5. Propulsion system equipped with relief valve, adjusting propulsion, ensure excellent performance.

6. Different types, such as hydraulic and electric, and pneuma.

u_1960978957_3758609287&fm_199&app_68&f_JPEG

Application:

1. Drilling Rig Machine is applicable to small and medium-sized mines and road construction, defense and water conservancy, and stonework in large-diameter borehole drilling operations.

2. Portable Drilling Rig is also an indispensable rock drilling facility for open pit mining, especially for bumps and rugged terrain where other drilling vehicles do not work properly.


Profile:

Our company has been founded in the mining construction equipment industry for more than 20 years. We have a professional technical team to ensure product quality and service. If you have any related product requirements, please contact us.
