Description of Diamond wall sawing:
A wire saw is a kind of saw designed to cut brittle and hard materials using the principle of wire saw wood breaking. The wire saw uses the diamond wire hydraulic motor to cut concrete at high speed and then realizes a relatively complete static cutting surface. Implement large-area, large-volume overall separation for larger-sized concrete structures.

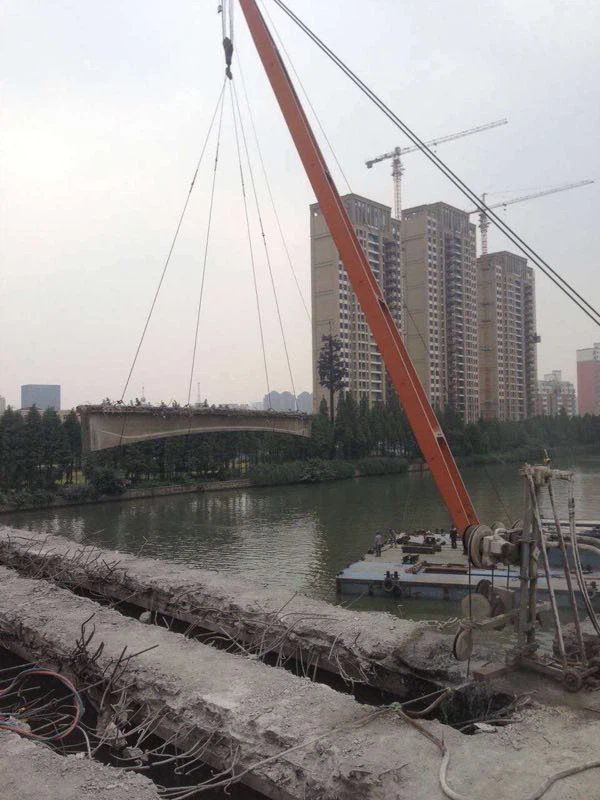

Hydraulic wire saws are competent for closely packed reinforced concrete structures, thick brick walls, and even underwater cutting operations. It can meet the cutting depth that cannot be achieved by hydraulic wall saws. The cutting depth is not limited, the working environment is more adaptable, and the working efficiency is higher. It is the backup equipment of the hydraulic wall saw.
Technical Parameter:
| Wire saw wheel Parameters | Hydraulic Pump Station Parameters | ||
| wire drive mode | hydraulic | rated output power | 22/25kw |
| mode type | HM-40/80 | working voltage | 380v50Hz |
| minimum input power | 25HP or 33HP | hydraulic pump station | gear pump |
| output shaft speed | 350/940/1300r/min | motor working flow | 40-100L/min |
| maximum wire length | 18m | working pressure | 15-20Mpa |
| feeding method | fully hydraulic | oil tank volume | 16L |
| Wire saw wheel | 64kg | weight | 98kg |
| motor weight | 13kg | dimension(mm) | 650*550*1150 |
| cutting type | transverse cutting | longitudinal cutting | both directions |

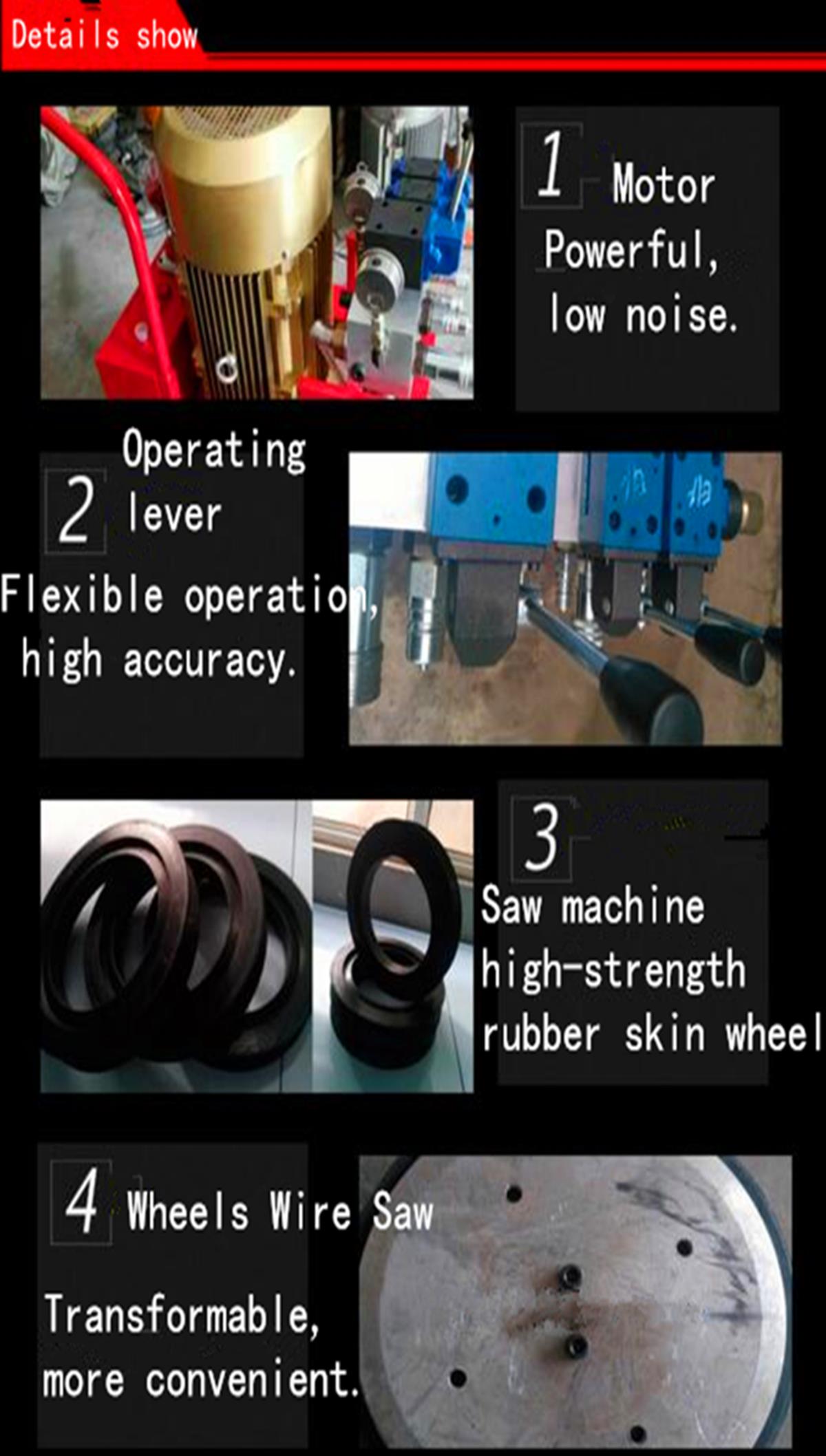

Features:
1. Hydraulic-driven, Diamond Wire Saw Machines can work in different situations.
2. It's made of hard materials. The wedges are running stable. Long surviving life.
3. Powerful cutting ability, it can split stone or concrete easily with no cutting depth limitation.
4. High Efficiency, and it's easy and comfortable to operate and maintain.
Method Steps of Diamond Wire Saw Cutting Machine:
1. The diamond wire saw needs to be divided into cutting directions, and there are clear arrow marks on each clip of the spring diamond beaded wire saw.
2. If it is not indicated by an arrow, it can also be identified by the beads of the diamond beaded wire saw itself. The long beaded base is the tail and the short is the front, so the short front is the cutting direction of the spring diamond beaded wire saw.
3. Before use, the diamond wire saw is a closed cycle after docking, if not, it needs to be docked first.
4. When using, please make sure that the cutting direction of the diamond wire saw is forward, and cannot be cut in the opposite direction, so as to avoid the taper at the front and rear ends of the beading, and ensure the normal use of the diamond beading wire saw.
