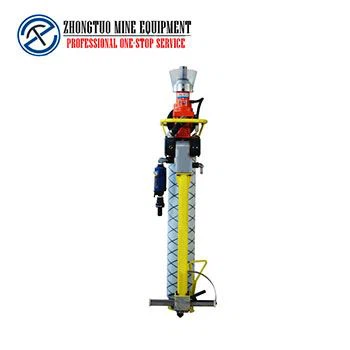

Characteristics of MQT 130 Pneumatic Roof Bolter Drilling Machinery:
1.Small volume, light weight, simple operation, convenient maintenance of gear type pneumatic motor, running stability, high reliability of new glass fiber reinforced plastic pneumatic design, safety explosion-proof longer service life.
2. Rock hardness f10 is mainly used in coal mine coal lane, rock bolt and anchor cable supporting drilling, and stirring and install the resin anchor rod, anchor rope, for with damping nut bolt, anchor drilling machine can be directly to tighten the nut when mixing, realize the bolt mixing, a complete installation, and meet the requirements of initial prestressing force anchor.
Parameters of MQT 130 Pneumatic Roof Bolter Drilling Machinery:
| Rated air pressure | Mpa | 0.5 | ||
| Rated speed | r/min | 360 | ||
| Rated torque | N.m | 130 | ||
| Maximum output power | KW | 3.2 | ||
| Stall torque | N.m | 320 | ||
| No-load speed | r/min | ≥800 | ||
| Gas consumption | m3/min | 4.3 | ||
| Maximum thrust | KN | 8.8 | ||
| Rinse water pressure | Mpa | 0.6-1.2 | ||
| Noise | dB(A) | ≤95 | ||
| Drilling tail six Fang size | mm | S=19.22 | ||
| model | A2457 50) | B(3057 50 | C 3657 50 | |
| Total Weight | kg | 51 | 53 | 55 |
MQT 130 Pneumatic Roof Bolter Drilling Machinery have water flushing, rifle bar rotation and the pusher leg control is placed at the back head of the rock drill. An in line lubricator is included in the delivery of each rock drill. Together with the appropriate pusher leg.
