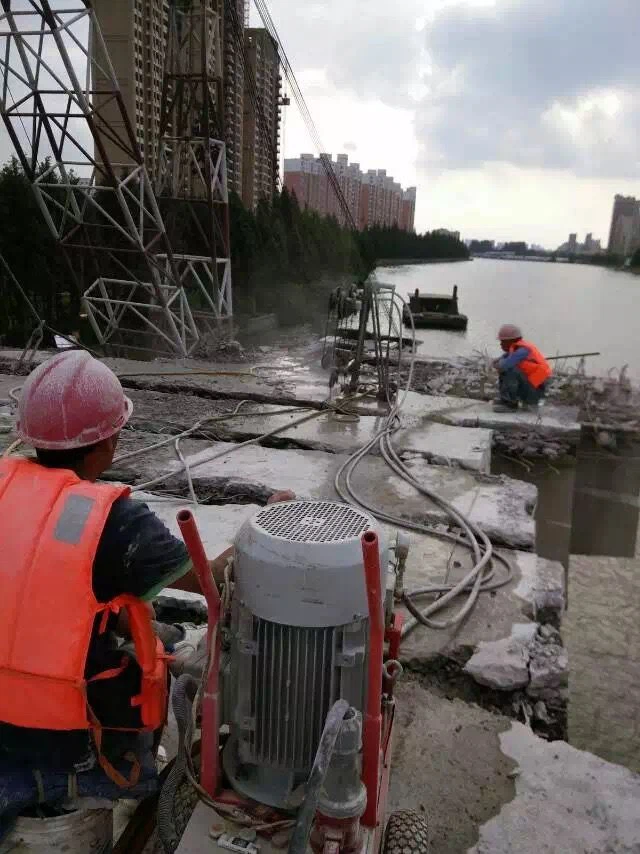

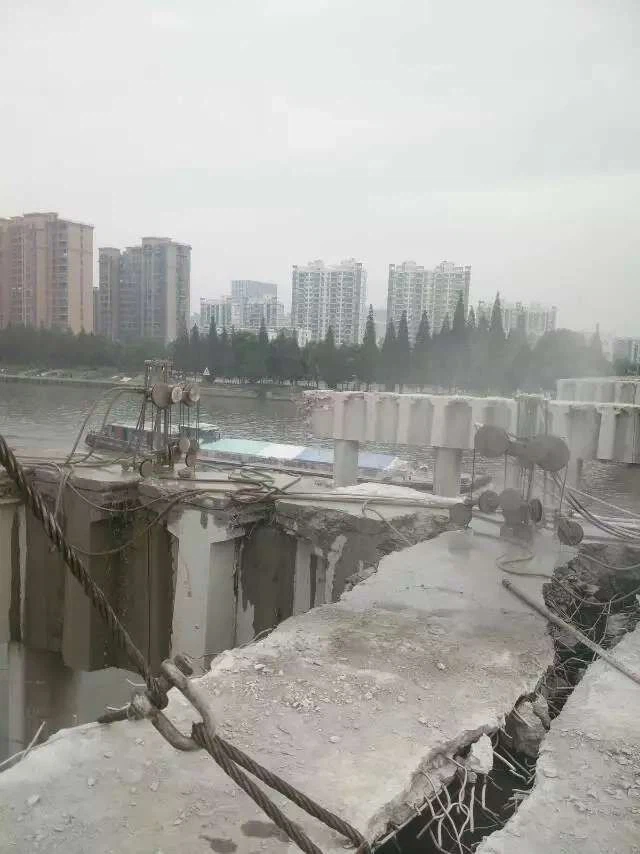

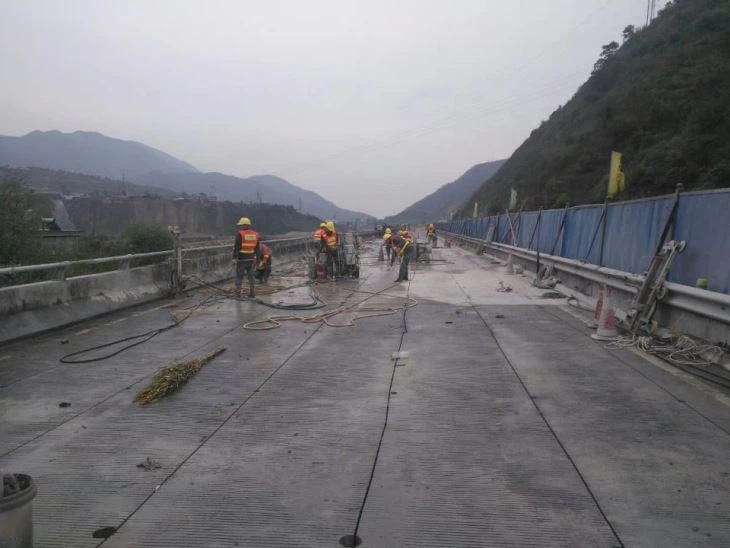

Introduction of Diamond wire saw cutting machine:
*The wire tension and cutting current is a closed loop automatically controlled by PLC and Inverter. *The cutting process can be automatically controlled accurately.
*Machine protection functions including wire broken, machine overload, cutting finished and other malfunctions happened. *Display and saving with digitization: the value of cutting current, linear speed, and moving speed indicated on the panel, and the cutting time can be saved. *The machine without phase request. It needn't change and distinguish the power phase.
Diameters of Diamond wire saw cutting machine:
| Wire saw wheel Parameters | Hydraulic Pump Station Parameters | ||
| wire drive mode | hydraulic | rated output power | 22/25kw |
| mode type | HM-40/80 | working voltage | 380v50Hz |
| minimum input power | 25HP or 33HP | hydraulic pump station | gear pump |
| output shaft speed | 350/940/1300r/min | motor working flow | 40-100L/min |
| maximum wire length | 18m | working pressure | 15-20Mpa |
| feeding method | fully hydraulic | oil tank volume | 16L |
| Wire saw wheel | 64kg | weight | 98kg |
| motor weight | 13kg | dimension(mm) | 650*550*1150 |
| cutting type | transverse cutting | longitudinal cutting | both directions |
Advantages of Reinforced Diamond Wire Saw Machine:
1. The hydraulic wire saw has the characteristics of reducing labor intensity, overload protection, and strong power.
2. It can double the speed of work to shorten the construction period, further reduce labor costs, improve bidding advantages, and expand the scale of acceptable construction projects.
3. The stability of the hydraulic system itself greatly reduces the loss cost of construction equipment.
4. Low noise and no pollution. During the cutting process of diamond tools, the electro-hydraulic system runs smoothly, with only the sound of grinding reinforced concrete, and there is no high-decibel sound during construction.
5. The construction period is shortened, and the operation can be stopped at any time node, the equipment does not invade the boundary, and it is not necessary to remove the equipment to open the line after the skylight time expires.
