Description of Hydraulic rock breaker

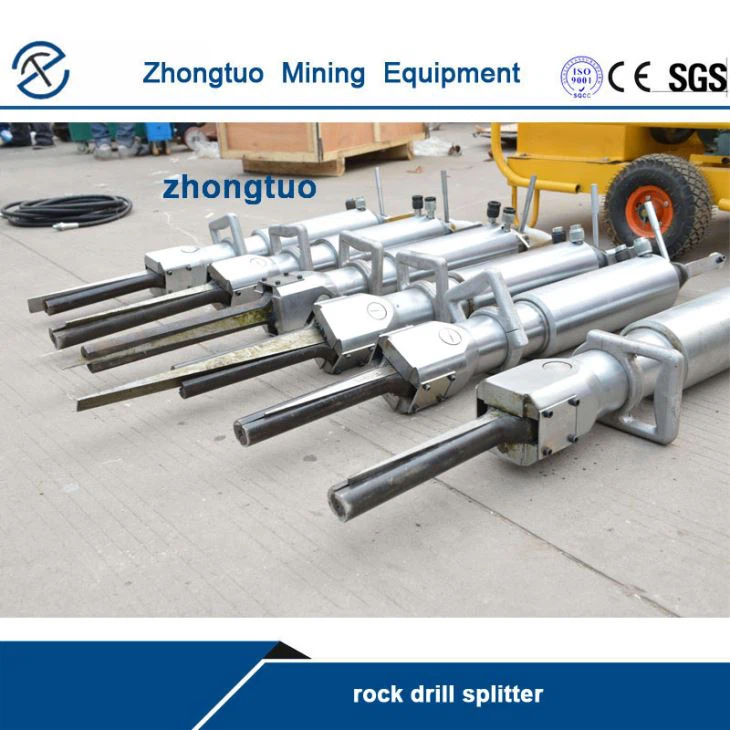

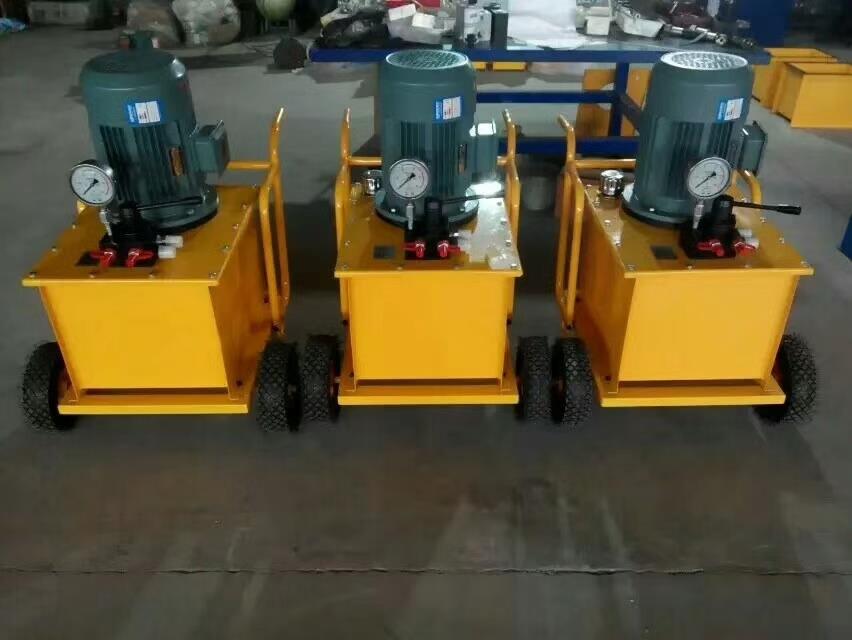

Hydraulic rock splitters use the high-pressure hydraulic pressure oil generated by the power unit as the energy source. It is transported to the cylinder tube of each splitting machine (also known as the splitting gun) through the oil pipe to control the piston rod in the splitting machine. Pushing the telescopic and subtly applying the wedge principle, the meteorite force reaches several hundred tons or even thousands of tons.
Our wedges are made out of forged and heat-treated steel which makes them highly wear-resistant and flexible. Additionally, we have developed special grease which allows the wedges to withstand extremely high splitting forces.
If you want to learn more details about this machine, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998
Specification:
| Drilling diameter | Drilling depth | Split block length | Theory splitting force | The actual splitting force | Weight | Crack width |
| (mm)D | (mm)L | (mm)D | (T) | (T) | (kg) | (mm) |
| 38-42mm | ≥450mm | 150 | 600 | 450 | 25 | 10-30 |
| 40-42mm | ≥550mm | 250 | 680 | 480 | 30 | 10-30 |
| 42-46mm | ≥650mm | 350 | 700 | 500 | 33 | 10-30 |
| 46mm | ≥750mm | 350 | 780 | 600 | 35 | 10-30 |
