Name: Stone Rock Handle Splitter Wedges And Shims In Stock
Brand: Zhongtuo
SKU: 58210646

Stone Rock Handle Splitter Wedges And Shims In Stock

Feature
1.) Mainly rely on manpower, therefore labor-intensive, and have difficult working conditions.
2.) Suitable for exposed ore, cranny-upgrowth efflorescence ore belt, particularly for naturally formed multi-free surfaces ores, and arch stones with one or two surfaces connected with original rock.
3.) Suitable for mining where lack of power, water supply.
4.) Suitable for quarrying layered ores which are either horizontal or gently inclined, have layer depth around 1.5m.
5.) Can apply desegregation and separation of large stone blocks quarried through other methods.
6.) It is easy to handle and maintains its value in mines that have better rock fracturing performance and low mechanical level.

Description of Stone Rock Splitter Wedge and Shim

These traditional tools have been used for eons in the stone industry and are still among the most cost-effective tools for splitting stone.

rock splitter is a kind of manual tool that uses manpower to impact the metal wedge into holes on stone, thereby splitting stone. It is mainly used in splitting cracked stone and arch stone which by utilizing a wedge set can be separated into smaller or standard stone blocks. Wedge can also trim relatively large and irregular stone blocks.

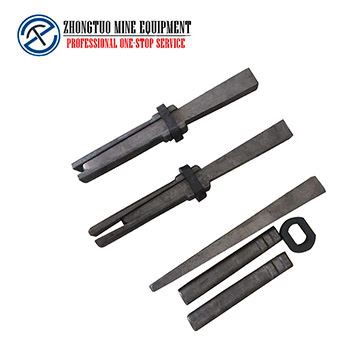

Each set rock splitter consists of a metal wedge (the plug), and two shims (the feathers). The feathers are wide at the bottom and tapered and curved at the top. When the two feathers are placed on either side of the plug, the combined width of the set is the same at both ends. The depth of the drilled hole depends on the length of the wedge.

Technical Parameter of Stone Rock Splitter Wedge and Shim

Size(mm)	Unit weight(kgs)	Package
14x125mm	0.16	150pcs/carton
16x125mm	0.18	150pcs/carton
20x190mm	0.50	50pcs/carton
24x200mm	0.58	50pcs/carton
32x270mm	1.50	20pcs/carton
34x280mm	1.70	20pcs/carton
38x325mm	2.20	15pcs/carton
38x600mm	3.60	10pcs/carton

rock splitter wedge-01

rock splitter wedge-02

Advantage of Stone Rock Splitter Wedge and Shim

Stone Rock Splitter Wedge and Shim in Shaanxi Zhongtuo are made of 60Si2Mn material

1. High strength: 60Si2Mn has high strength and hardness, making it suitable for applications that require withstanding large loads and extrusion forces.

2. Good ductility: This steel has good ductility and can withstand large deformations, which is beneficial for making springs with bent or complex shapes.

3. Excellent fatigue life: 60Si2Mn has excellent fatigue resistance and is suitable for long-term applications under heavy loads, high-frequency vibrations, or deformation stresses.

4. Good resilience: This steel has high resilience after being subjected to force, which can effectively restore its original form and is suitable for situations that require frequent deformation while maintaining elasticity.

Please contact us if you want to know more details:

Email: Jenny@ztmineequipment.com

Whatsapp: +8613201801998

FAQ

1. Q: Are you a trading company or a manufacturer?

A: We are an original equipment manufacturer.

2. Q: How long is your delivery time?

A: It is according to the model and quantity.

Generally, it is 3-5 days if the machines are in stock.

It will be 15-30 days if you want to customize the machines.

3. Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer you the sample machine.

But it's not free. You need to pay for the sample and the cost of freight.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow, etc.

Payment<=USD 5000, 100% in advance.

Payment>=USD 5000, 30% T/T in advance, balance before shipment
