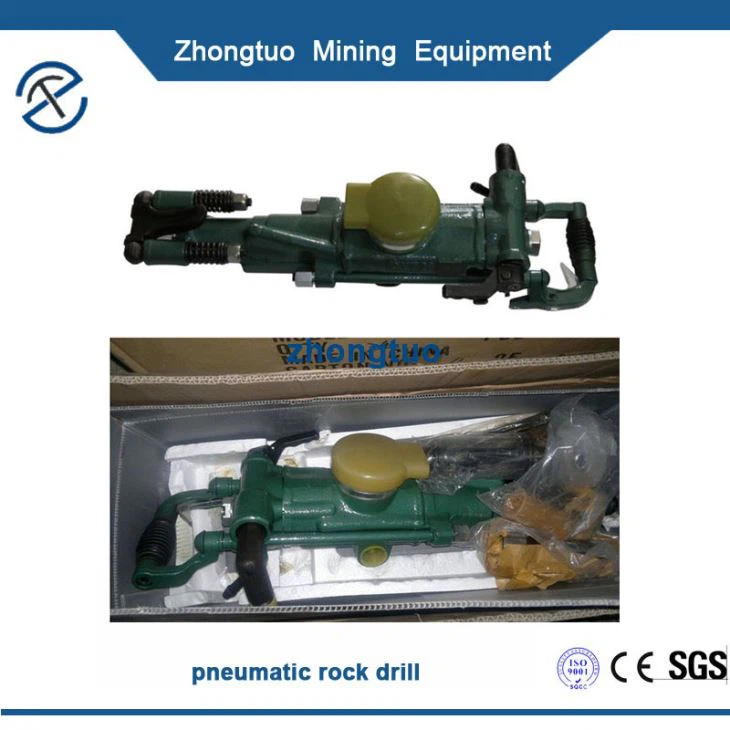

Description of air leg rock drill
Air leg rock drills are tools used to directly mine stones. It drills blast holes on the rock formations to place explosives to blast the rocks to complete the mining of stone or other stonework. In addition, the rock drill can also be used as a breaker to break down hard layers such as concrete.
Parameters of air leg rock drill:
| Machine weight | 26 | kg |
| Captain | 661 | mm |
| Cylinder diameter | 80 | mm |
| Piston stroke | 60 | mm |
| Working pressure | 0.5-0.6 | mpa |
| Impact pressure | ≥34≥37 | Hz |
| Gas consumption | ≤55≤81 | l/min |
| Tracheal diameter | 25 | mm |
| Water pipe diameter | 13 | mm |
| Drilling head diameter | 34-42 | mm |
| Drill tail size(hexagonal*length) | 22*108 | mm |

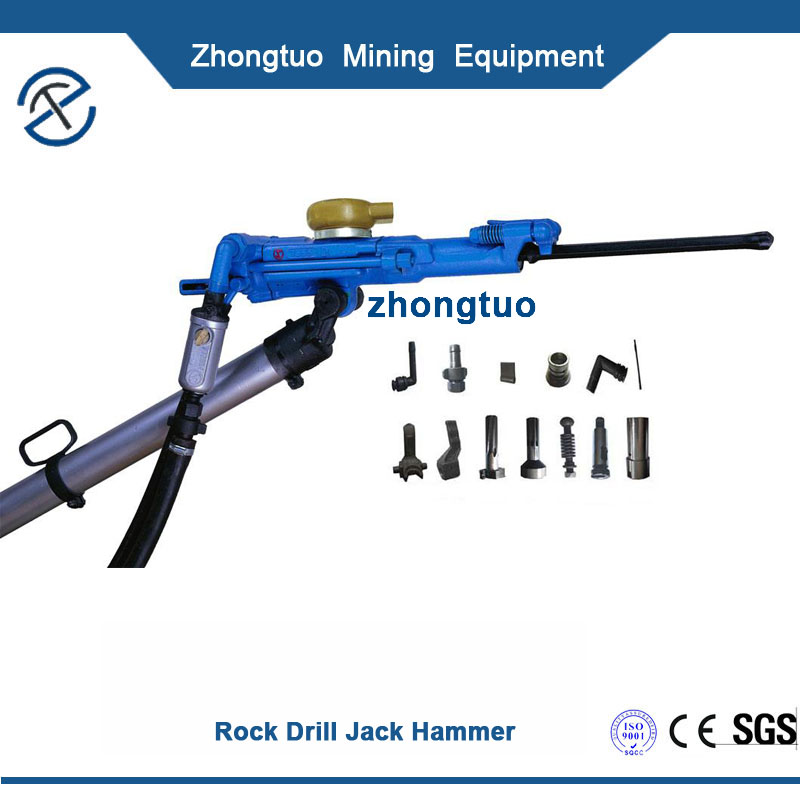

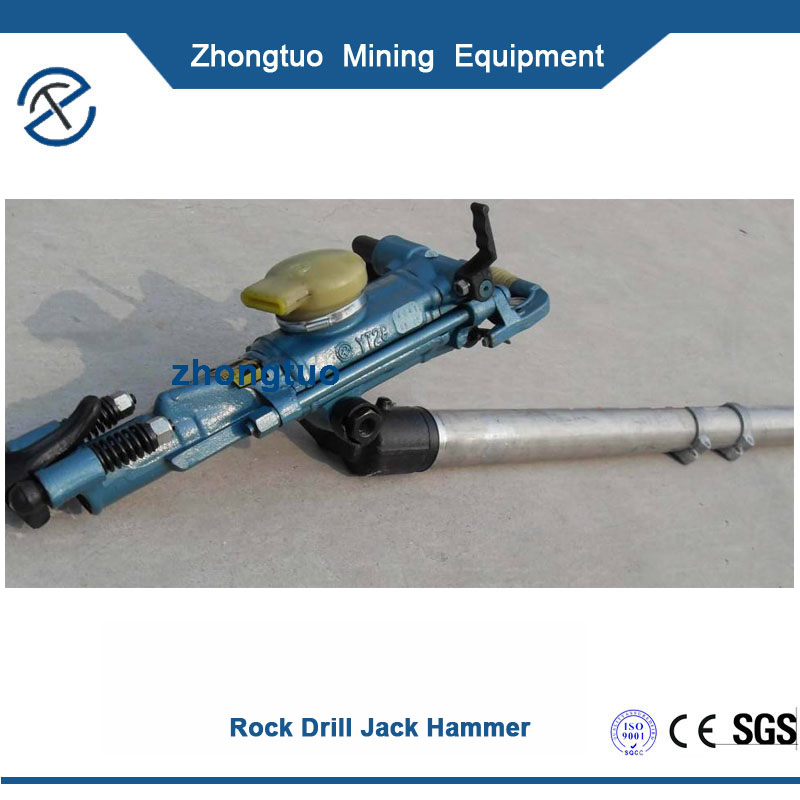

YT28 pusher leg rock drill supporting FT160BD type air leg (short gas leg) Technical
parameters:
| Air leg length | 1400 | mm |
| Advance the journey | 965 | mm |
| Cylinder bore | 65 | mm |
| Quality | ≈14.4 | kg |
| FT160BC type air leg(long air leg) | ||
| Air leg length | 1800 | mm |
| Advance the journey | 1365 | mm |
| Cylinder bore | 65 | mm |
| Quality | ≈16.9 | kg |
| FY200B-FY200C-type oiler oiler | 200 | ml |
| Quality | 1.02 | kg |
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are an original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally, it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow, etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment
