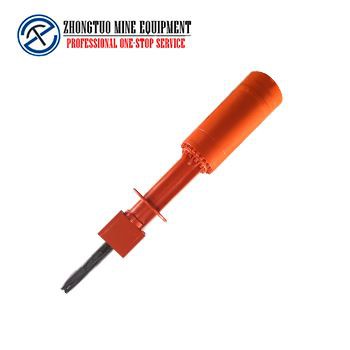

Hydraulic Rock Splitter Construction And Mining Equipment

Hydraulic Rock Splitter Construction and Mining Equipment

Hydraulic Rock Splitter Construction And Mining Equipment

THE KEY FEATURES INCLUDE:
SAFETY: Rock splitting is done without any explosives, pollution, or noise. Therefore it is possible to work in an environment where there are restrictions on such issues. Also, it offers a safe working environment.
PRODUCTIVITY: we offer you the highest possible productivity due to a very high splitting force and high durability and reliability. ACCURACY: it's more accurate than explosives because the direction of splitting is extremely easy to control. EFFICIENCY: no flying object and let you control splitting direction easily, no temporal evacuation that causes the pause of the extra cost loss of operations and labor
SIMPLE: it is very simple and easy to use and there is no need for highly experienced operators.
FLEXIBILITY: it can work in a minimum working area, it's designed to adopt the hard condition.

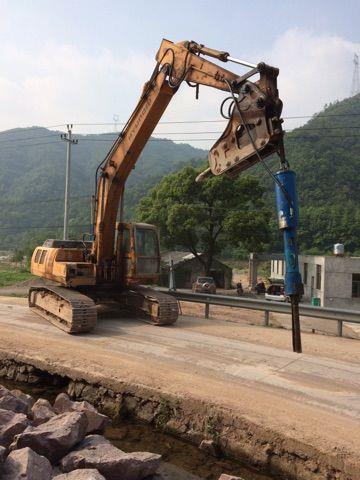

ADOPTABILITY: it can be attached to almost any kind of hydraulic excavator from 20 tons and up.

Send Inquiry

Contact:

Summer Zhu

Mobile/Wechat/Whatsapp: +86 13571973823

Email: summer@ztmineequipment.com

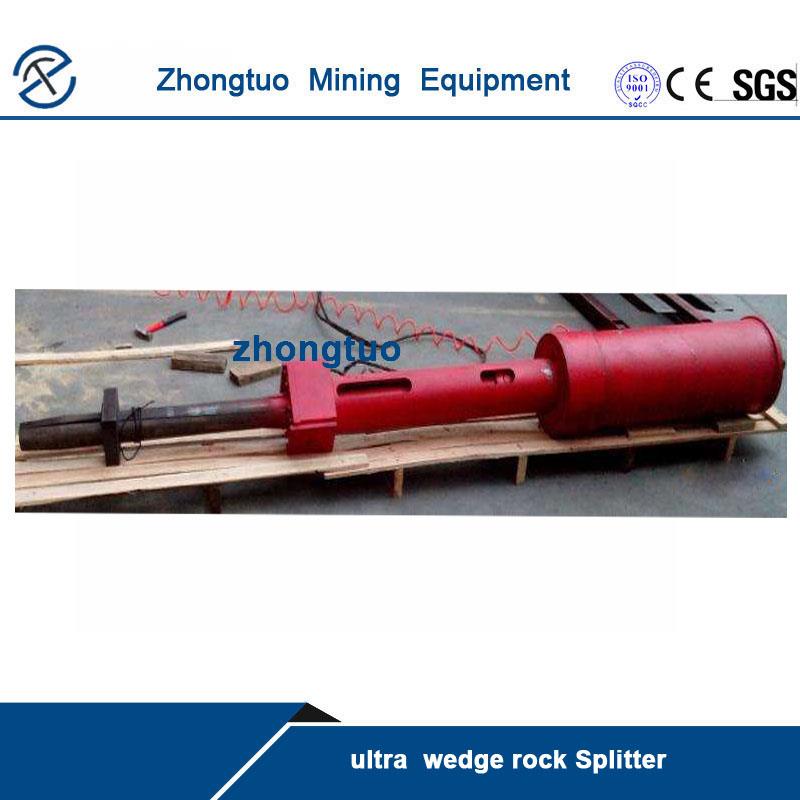

Ultra-large rock splitter:

The large splitting machine is also called a mountain machine, a split machine, a stone-breaking machine, etc., and is composed of a hydraulic power station, a splitting gun, and a tubing. Mainly used for primary and secondary disintegration of large ore or rock in the case of large mines and quarries that do not allow the use of explosives.

Hydraulic Rock Splitter Construction And Mining Equipment

NO.1: Specification

brand	ZHONGTUO	size	ZT260-P100
drilled hole depth	1.8m	materail	iron
drilled hole diameter	100mm	rated pressure	24-36 mpa
splitting force	6800 tons	weight	1000kg
cylinder diameter	260mm	producing place	xi'an shaanxi

NO.2：instructions

1 please mease the machine after using.

2 be sure no one stands over the operating area when the carrier starts to work.

3 check out the hydraulic oil from time to time, please change the oil if the color gets black.

NO.3: after-sales

the time you inform us of the problem by email phone or fax, we will diagnose it by the engineer and offer you the testing reports containing the needed parts and related solutions.

please friend our products if you want.

How to work

(1). Hydraulic rock splitter is mainly composed of a power pump pack and hydraulic cylinder. Mainly applicable to the secondary breaking. First drill a hole in the stone, then inserts hydraulic cylinders which contain wedges and feathers. Start the engine to provide hydraulic pressure. Repeat the process until the whole structure is fractured into smaller sections and ready for removal.

(2). Remove redundant reinforced concrete structures, concrete machine beds, plinths, etc.

(3). Split all kinds of natural stones, rock, granite, marble mining & quarrying.

(4). Now it is also widely used in mineral mining(cave mining), civil engineering construction, and demolition. It is also an indispensable tool in construction, river dredging, salvation, etc.

Contact us

Summer

Mobile/Wechat/Whatsapp: +86 13571973823

Email: summer@ztmineequipment.com
