.Application of Hydraulic rock splitter:
1. Mining of mine stone: granite, marble, sandstone, limestone, etc.
2. Bridge pier removal
3. Methods of line drilling
4. Breaking reinforced slabs-pillows
Specification:
|
Model |
Drilling diameter |
Drilling depth |
Rod length |
Crack width |
Split time |
Theoretical splitting power |
Actual splitting force |
Size |
Weight |
|
Unit |
MM |
MM |
MM |
MM |
S |
T |
T |
MM |
KG |
|
ZT-110 |
110 |
1000 |
850 |
20-50 |
8-15 |
3000 |
4000 |
1200*105*110 |
37 |
|
ZT-130 |
130 |
1000 |
850 |
20-60 |
8-15 |
3500 |
4000 |
1200*110*115 |
40 |
|
ZT-180 |
180 |
1000 |
850 |
20-70 |
8-15 |
4000 |
5000 |
1200*130*130 |
45 |
Preparation for the procedure:

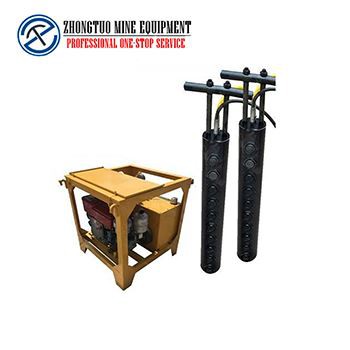

The working principle of the Piston rock splitter is based on two counter wedges inserted in a pre-drilled hole. A hydraulic cylinder pushes out a center wedge between the counter wedges to spread them apart and the rock is forced to crack. To maximize the splitter's effectiveness, the 3-step approach below is highly recommended:
1st Step: Insert half of the total length of the wedge and operate the Piston splitter to split.
2nd Step: Then insert about ¾ of the total length of the wedge to split again.
3rd Step: Finally, insert the total length of the wedge and split to complete.
