Product Description：
Bridge prestressed intelligent grouting technology (intelligent grouting equipment) refers to a grouting process that uses computer technology to control the entire grouting process, uses slurry circulation to discharge air and impurities in the pipeline, and does not require manual pumping and manual pressure supplementation.
Intelligent grouting equipment has the functions of controlling the water-to-binder ratio, automatically adjusting pressure and flow, controlling voltage stabilization time, automatically recording grouting data, and continuously circulating the slurry to exhaust air, etc., which can ensure that the grouting is full and dense. Meets code and design requirements for effective bridge structural durability.
Product parameters:
| Stirring speed | 1400r/min |
| Slurry fluidity | 10-178m³/h |
| Water glue | 0.25-0.28L/min |
| Grouting pressure | ≤1.0Mpa |
| Measurement accuracy | 0.1% |
| Pulping speed | 4m³/h |
| Grouting flow | 1.2m³/h |
| Motor Power | 12kw |
| Size | 2.7mx1.4mX2.3m |
| Voltage |
380v/50Hz |

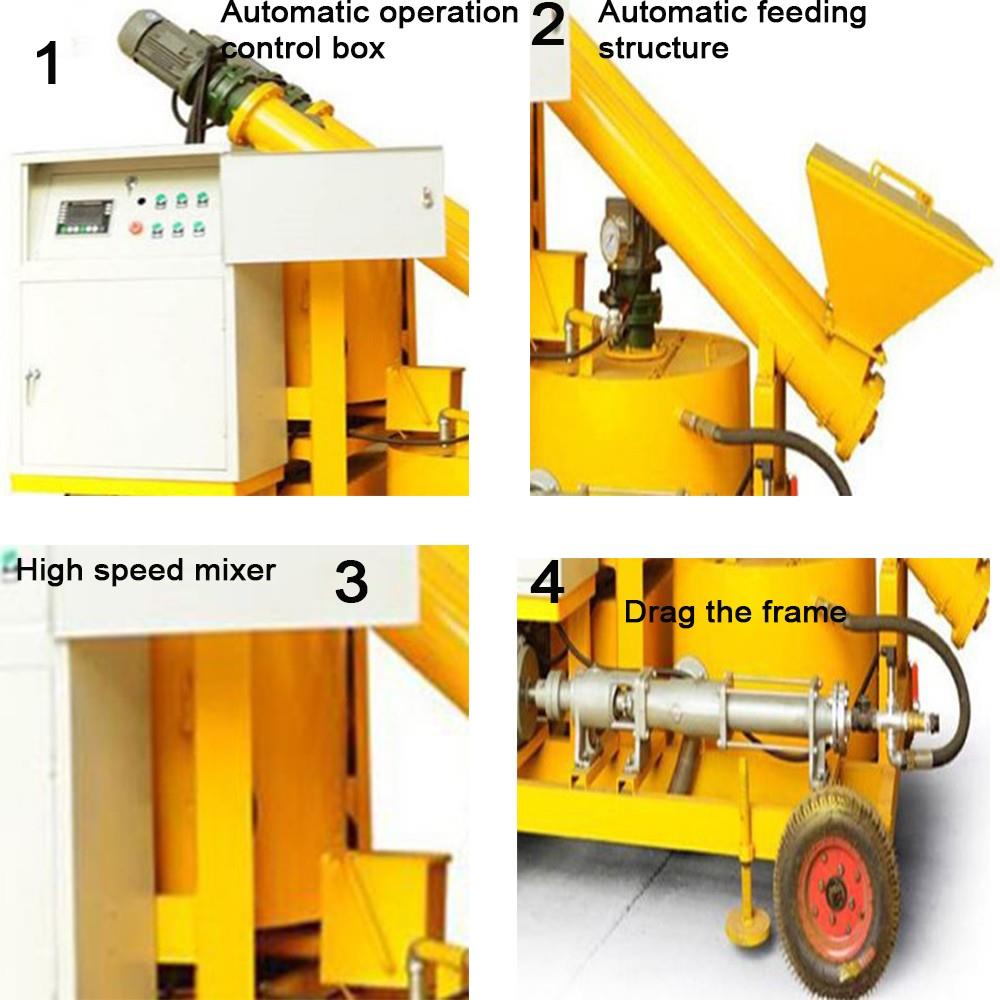

Advantages:
1. Automatic operation control box
After the login is completed, the system automatically enters the homepage interface. At this time, you can click Start, and the system can work. If you want to stop working, press the stop button directly, and the system will stop immediately. When the system completes high-speed agitation, the slurry valve needs to be manually opened, and the system performs low-speed agitation. After the slurry is completed, the slurry valve is closed and the remaining work is completed.

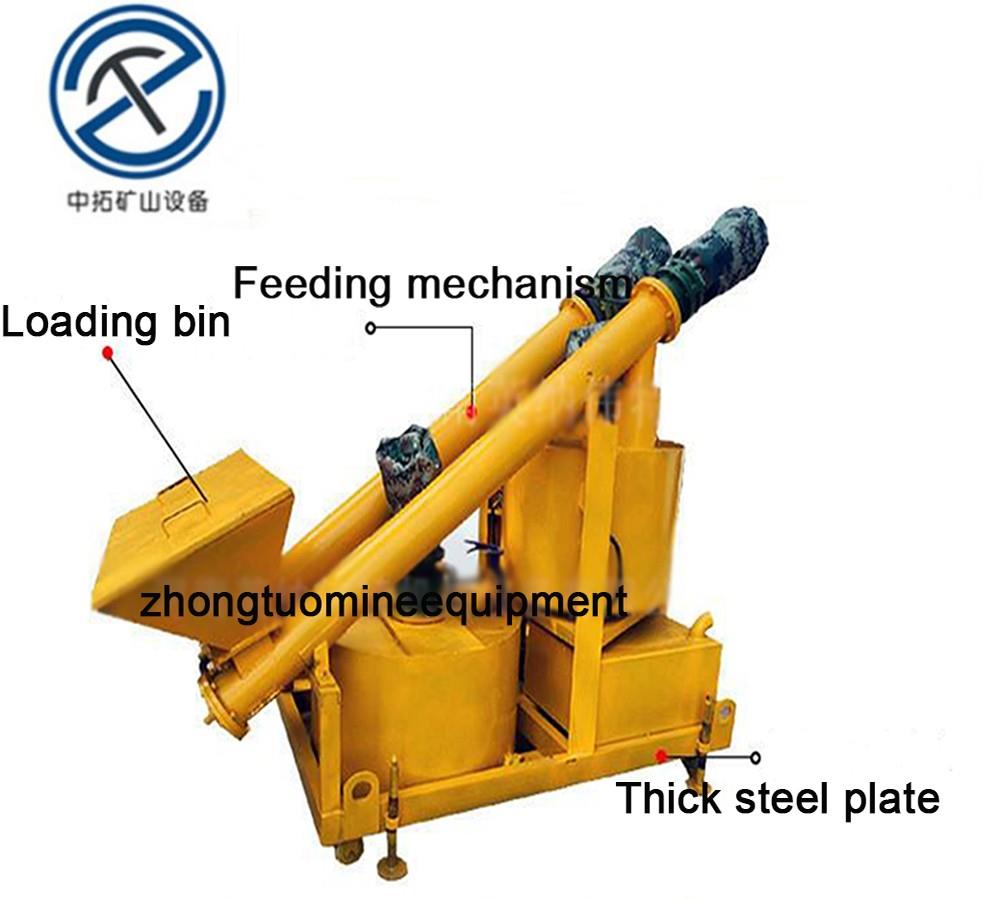

2. Automatic feeding structure
The structure consists of two screw conveyors and two hoppers. If the cement and the admixture are separated, the materials can be separately transported. If it is a mixed-pressure slurry, the two hoppers can be simultaneously loaded to increase the feeding speed. It is done independently by the calculator.
3. High-speed mixer
The structure consists of a mixing drum, a stirring shaft, a stirring blade, a belt, and a drag motor. The electric rotation drives the rotating shaft through the transmission belt and then drives the stirring blade to rotate at a high speed in the barrel to fully stir the mixture in the barrel.
4. Drag the frame
The frame is welded with channel steel. There are 4 tires on the bottom. Two are in the steering direction. The front part is equipped with a triangular traction frame. The four corners of the frame are equipped with screw feet, which makes the trolley stable during the work. And the level of the trolley can be adjusted to ensure the accuracy of the weighing measurement.
Application range
An intelligent pulping machine is special equipment for railway and highway construction. It is applied to prestressed construction in railway and highway bridge construction projects and production in some chemical enterprises. The intelligent pressure grinder has the characteristics of convenient movement, a high degree of automation, accurate measurement, and simple operation.
After-sale Service:
1. The company provides you with 6X24 hours of consulting and technical support.
2. All calls are returned in seconds and 30 minutes gives you a reasonable solution.
3. If you need to go to the site, the technicians will go back and do their best to get technical assistance.
4. With the purchase of intelligent presses, Zhongtuo Mine Equipment provides you with a one-year warranty to protect your use.
