Strand Jacks Lifing Hydraullic Lifting Jack
video

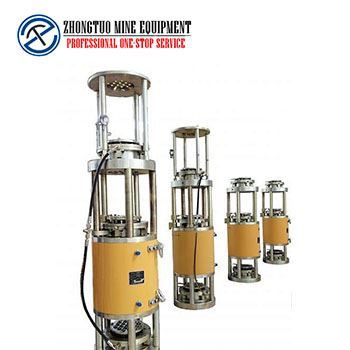

Strand Jacks Lifing Hydraullic Lifting Jack

Strand Jacks Lifing Hydraullic Lifting Jack

Feature of hydraullic lifting jack
1. No restrict in weight, span or area by extended combination of lifting equipment
2. As long as there is a reasonable load-bearing hanging point, lifting height is not restricted
3. Lifting anchor possesses reverse movement self-locking function, which makes the lifting process safe and the component can be locked reliably at any position for a long time during the lifting process
4. Small in size and weight, large in capacity, suitable for use in confined spaces or lifting high tonnage components indoor High automation, easy and flexible operation, good security, high reliability, wide application, versatility.
Send Inquiry


Application:

1. Hydraullic Lifting Jack is a kind of general purpose for prestressing applied for pre-tension and post-tension of various steel strand anchors.
2. Hydraulic strand jack is widely used in precast structures, such as prestressed bridge girders and decks units, rock and earth anchoring construction, hydraulic structures and other great projects.
3. The hydraulic prestressing Jack is also easy to hoist, to operate and convenient to maintain, with high contamination tolerance and durability.


hydraulic strand jack system strand jack lifting system (2)

Specification:

Model

Capacity
(Ton)

Cylinder diameter
(mm)

Cyliner height
(mm)

Steel strand quantity
(pcs)

Steel strand diameter
(mm)

Weight
(kg)

ZT-TSD-100

100

400

1350

9

155

500

ZT-TSD-200A

200

490

1650

18

170

950

ZT-TSD-200B

200

510

1700

19

190

1000

ZT-TSD-250

250

560

1720

25

250

1200

ZT-TSD-350A

350

635

1770

31

260

1900

ZT-TSD-350B

350

635

2650

31

260

2800





strand jack lifting-2

Steel strand hydraulic jack application industry:

·Simultaneous lifting of bridge decks in bridge construction;
·Synchronous lifting of generator installation;
·Simultaneous lifting of diesel engine installation;
·Simultaneous lifting of sunken ships;
·Simultaneously upgrade and install the dome of the gymnasium construction;
·Simultaneous upgrade of large-scale driving installation in shipyard;
·Shield machine installation and upgrade simultaneously;
·Large-scale mining mills are simultaneously upgraded and installed;
·High-speed rail construction box girder rotation;
·The steel corridors between the two high-rise buildings are simultaneously upgraded and installed;
·Simultaneous lifting of pressure vessel installations in refineries;
·Synchronous lifting of forging equipment installation.
