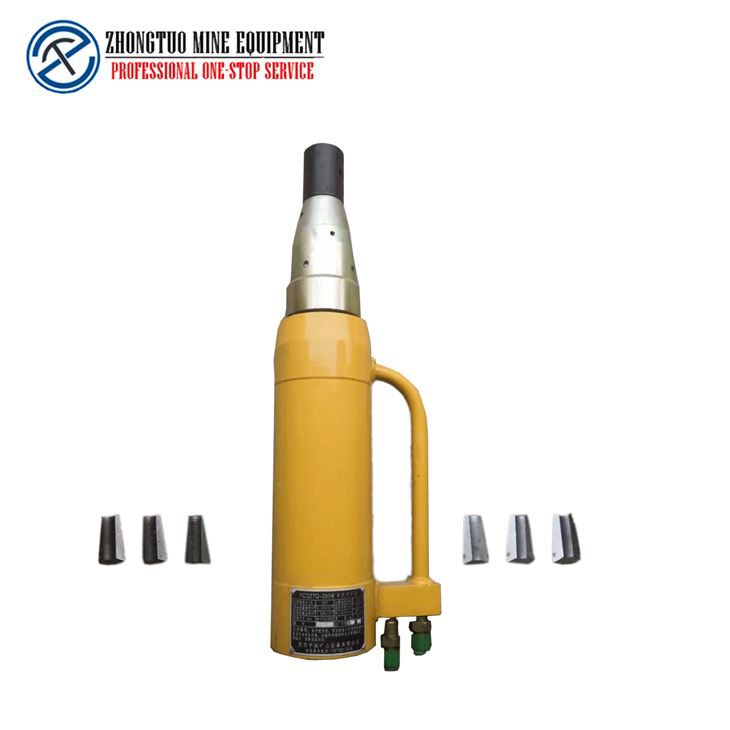

Single strand Stressing Jacks

1.The Single strand Stressing Jacks is suitable for single-hole tensioning, group-anchor tensioning one by one, troubleshooting, anchor withdrawal, and supplementary tensioning.
2.As far as the strength of the pre-stressed tendons is concerned, Φ15.24 steel strands and Φ12.7 steel strands below class 2000 can be tensioned. If the parts are replaced/removed, the finish-rolled screw ribs can be tensioned (customers place an order) Rebar etc.
3. With special support feet, it can also be used to deal with pre-stressed tendons that do not meet the requirements in the pre-stressed construction.
4. Suitable for high-altitude or small space operations.

Description of Single strand Stressing Jacks

YDCQ Series Single strand Stressing Jacks is capable grip and stress single strand (bare or epoxy coated). It is designed with an automatic grip-and-release build-in system that facilitates more efficient stressing. Precast yard operators are the main user of this stressing jack.

The Single strand Stressing Jacks has the characteristics of large output force, light weight, and long-distance operation. At the same time, it is equipped with the oil pump station of the factory, which can realize various types of operations such as jacking, pushing, pulling, and extrusion. It can be widely used in transportation, Railways, bridges, shipbuilding and other industries have been widely used in foundation settlement tests and static piles in recent years.

Parameters of Single strand Stressing Jacks

Project	Unit	Value
Nominal tension	KN	257
Nominal oil pressure	MPA	50
Tension piston area	M2	5.137*10
Return piston area	M2	1.335*10
Piercing hole diameter	MM	19
Trolley trip	MM	200
Dimensions	MM	180*568
Return oil pressure	MPA	Less than or equal to 25

If you want to learn more details about this machine, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998

Precautions for Use Single strand Stressing Jacks

1. After using the tool anchor cup and tool clip together in the jack for a period of time, if the anchor return is not smooth and the pressure value of the jack's return anchor return is greater than 10Mpa, it is necessary to clean the anchor cup hole and clip with diesel or gasoline, and then apply anchor return spirit to the cone surface.

2. Steps to remove anchor spirit:
① First, unscrew the support sleeve nut or group anchor limit nut and anchor extractor, then unscrew the support sleeve and remove it.
② Use a screwdriver to unscrew the screw.
③ Unscrew the tool anchor cup and remove the tool clip.
④ Apply evenly distributed anchor spirit on the anchor cup hole and clamp cone surface, and then install it back to its original state.
⑤ When installing the support sleeve, it needs to be screwed to the bottom (i.e. tightly attached to the piston step).

3. When using, it is prohibited to stand in front or behind the steel strand to avoid accidents.

Single strand Stressing Jacks
