Pneumatic Rotary Roof Bolter
video

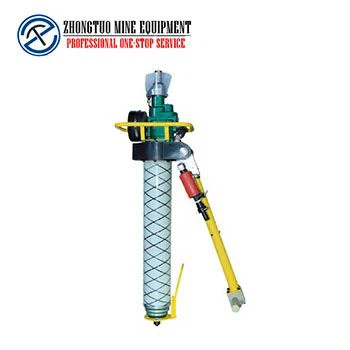

Pneumatic Rotary Roof Bolter

Pneumatic Rotary Roof Bolter

1. Small size, lightweight, simple operation, and convenient maintenance.
2. Gear-type air motor, stable operation, and high reliability.
3. FRP air leg design, safe explosion-proof, and long service life.
4. It can be rotated to drill inclined or straight holes, and when the motor is started, it can be stabilized at the set point.

Description of pneumatic Rotary Roof Bolter:

1. The roof bolter has a compact structure and easy operation;

2. A large-size motor is used for power, which has a greater power-to-weight ratio and improves work efficiency by 30%.

3. The advanced water valve structure improves the pressure-bearing capacity of the waterway system and prevents water leakage.

4. The new type of fiberglass air leg design, is safe explosion-proof, has a long service life, cost-saving 20%.

5. Double exhaust and new sealing structure ensure the rapid and smooth lifting of the outrigger.

6. The use of a new exhaust muffler device greatly reduces the noise of the drilling rig and improves the downhole working environment.

pneumatic roof bolter.jpg

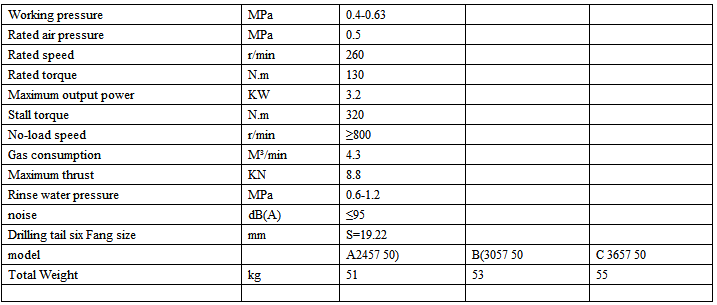

Parameters of Rotary roof bolter:

Rotary roof bolter-11a.png
