Description：

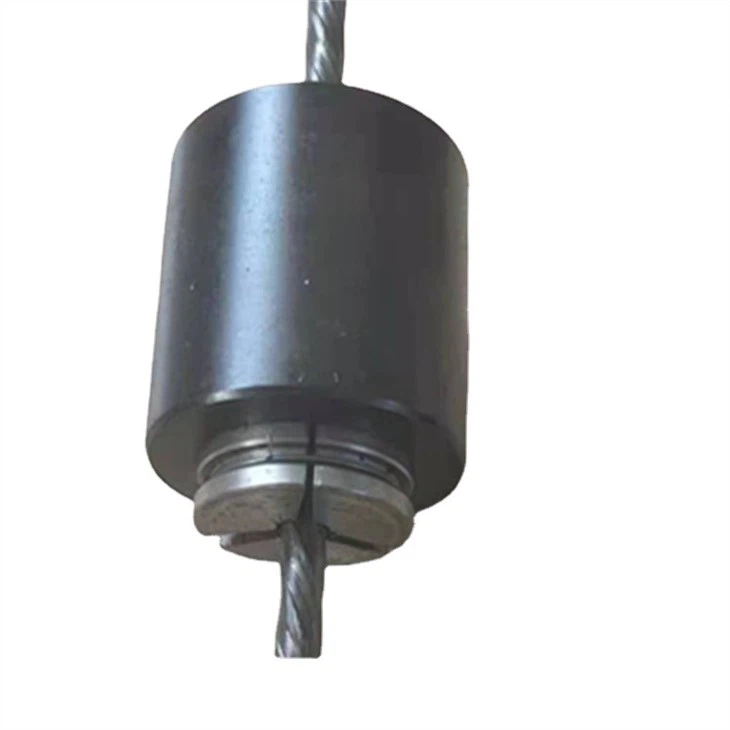

Post Tension Anchor is an anchoring device used in post-tensioned structures or components to maintain the tension of prestressed tendons and transfer them to concrete. Anchorages can be divided into two categories: (a) Tension end anchorage: Anchorage installed at the end of the prestressed tendon and can be tensioned; (b) Fixed end anchorage: Installed at the end of the prestressed tendon, usually buried into concrete without tensioning anchors.
Anchorage refers to a permanent anchoring device used in prestressed concrete. It is an anchoring tool in a post-tensioned structure or component to maintain the tension of the prestressed tendon and transmit it to the interior of the concrete. It is also called a prestressed anchor. Tool.
Structure of Mine Anchor Cable Anchorage: Steel strands, hair teeth, baffles, backing plates, anchors, and so on.
Technical Parameter:
| Product Name | 40Cr Material Prestressed mono anchorage |
| Material | 40Cr |
| Used for | Pre-cast Tensioning / Post Tensioning |
| Hardness | HRC50-60 |
| Type | Forging wedge |
| Surface Finish | Tapered Bore Ra 0.8, the Rest of Ra3.2 |
| Carbonitriding Layer Depth | 0.35-0.6mm/0.6-0.8mm |
| Carbonitride | 1-3 |
| Retained Austenite | 1-4 |
Engineering Anchor Series：
Anchor application:
Mining cable anchors are widely used in the support of coal roadways in coal mines, the initial support of tunnels, and the advantages of large anchoring force, both prestressing and full-length anchoring, and the length of the anchoring depth can be freely selected.
Fully supported highway, railway slope anchorage, slope maintenance, bridge and culvert construction, foundation reinforcement, and other fields.
Special type mine anchor cable anchor is mainly used for coal mine roadway support, and support the management of broken roofs, and can also be used in other construction projects.
Zhong Tuo:
Shaanxi Zhongtuo Mining Equipment Company was founded in 2005 in Xi'an, Shaanxi Province, It is a foreign trade company specializing in the research, development, and sales of machinery and equipment in the fields of mining, bridge, pavement, and tunnel.
Entire Service:
We would provide customers with a one-year warranty, during processing, if customers have any problems with installation and use, we have professionals to provide online text, voice, or video communication services for them.
