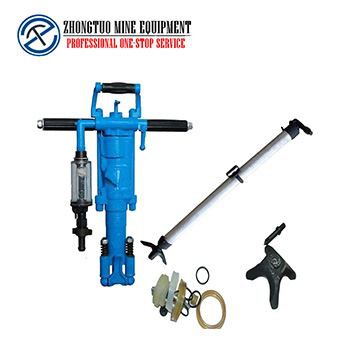

Pneumatic rock drill with leg support:
The air leg rock drill is suitable for use in rock hardening and hardening (f = 8-18) rock drilling and tilting holes, and can also be vertical upwards to cut the anchor holes on the roof. It is best suited for large-scale mines, medium-sized mines, and tunneling operations, pusher leg rock drill is the best response in the domestic users in the Korean market share of more than 70%.
YT27 Pneumatic Air Leg Rock Drill:
The YT27 rock drill is a kind of high-efficiency air leg rock drill machine. It is mainly used for blasting holes and other drilling works in quarries, railway construction, water conservancy construction, and national defense project facility.
When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg, it is suitable for wet dilling under various rocks at an aclinic and inclines orientation, it can also use in the trolley without Air-leg.Weight27 kg
Outside dimension(L* Wx H) 668* 248* 202mmCylinder dia 80mmPiston stroke 60mmImpact energyz 75.5J
Impact frequenceyz 36.7HzAir consumptions 83.3L/SAir pipe (inner dia) 25mmWater pipe (inner dia) 13mmAir pressure 0.63MPaWater pressure 0.3MPaBore dia 34-45mmBore depth 5m
Shank dimensions(hexx Length) 22* 108t 1mmModel FY250B oil lubircatorWeight 1.2kg
Oil capacity 0.25L
Airleg FT160A FT160BWeight 17kg 16 kg
Length: Max 3006mm 2526mmMin 1668mm 1428mm
Propulsion stroke 1338mm 1098 mmAxis thrust (max) 2000N 2000N
