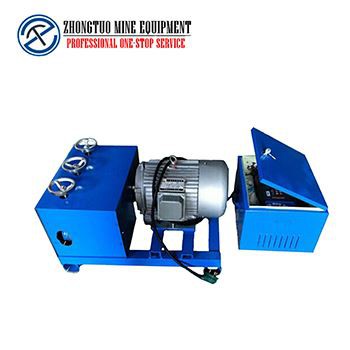

Description of pc strand pusher machine
PC strand pusher machine is also known as strand threading machine.pc strand pusher machine (prestressed steel strand threading hole is referred to as the threaded cable) is driven by mechanical transmission. The roller clamps the steel strand for transmission.
Working Process of Strand Pusher Machine In Promotion
1) Pull out the stranded steel wire from the cage, loosen the handwheel, insert the stranded steel wire into the inlet of the machine, and out through the outlet, put a plastic guide cap on the end of the stranded steel wire and compress the handwheel , But not too tight, so as not to affect the life of the pressure roller.
2) Inform the staff at the other end to push the button switch, so that the steel strand enters the reserved hole along the wire to the other end, and the extension reaches the reserved tensile size. When the exposed length of the steel strand needs to be adjusted slightly, you can use your finger Tap the forward or backward button on the control switch.
3) Complete the stranding work of one stranded steel wire, put a guide cap on the head of the next stranded steel wire, and repeat the operation of 2) 3).
4) When the conveying distance is not reached, the handwheel screw on the machine can be adjusted until it meets the working requirements, but it cannot be adjusted too tightly, so as not to aggravate the wear of the pressure wheel and reduce the service life during operation.
5) When working, pay attention to whether the operation is normal. When any fault is found, it should be shut down immediately to find out the cause and restart after troubleshooting. TECHNCIAL DATA of PC strand pusher machine:
Technical Data for CSJ15-60 Automatic Strand Pusher Machine(60M)
