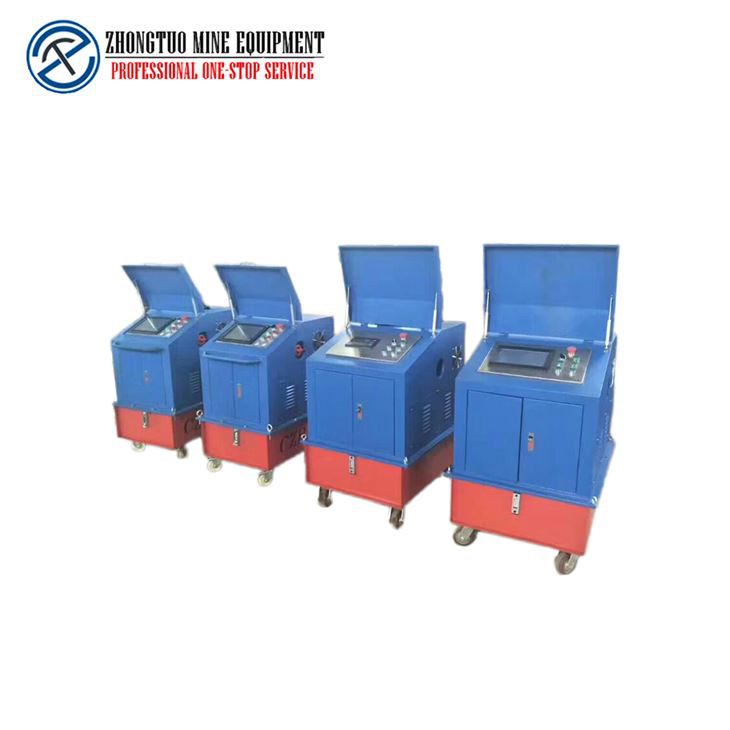

Intelligent Tensioning Equipment|A hydraulic pump station and four tension jacks
Description of Post Tension Intelligent Hydraulic Pump Station:
Stressing is important in the prestressed construction of bridges and highways. However there are errors with stressing by humans which will affect the quality of construction. Intelligent stressing equipment is a kind of high technology which can guarantee the high quality of stressing with its accuracy and stability.
Parameters of Post Tension Intelligent Hydraulic Pump Station:
Tension system technical indicators
Force system accuracy 0. 3% F. S
Displacement measurement accuracy 0. 5%
Double top pair pull unbalance 5KN
Hydr aulic station working voltage 380 +10%
Control system Operating voltage 220 +10%
Use temperature -20 C -50 CHydr aulic station
Maximum oil pressure 60MPa
Flow 3L 1 min
Motor power 3KW
Voltage 380V (Can be customized)
Working Theory of Post Tension Intelligent Hydraulic Pump Station
The main pump and vice pump with a wireless connection distance of not more than 200M. Vice pump displacement, pressure signal transmission to the main pump. The main pump will signal processing, the control signal will be transmitted to the vice pump, control the jack of oil, stop, return oil. Tensioning the construction site at the same time the main parameters of the site to stretch the parameters of the wireless transmission parameters to the site monitoring computer, and then by the site monitoring computer will pull the data uploaded to the company to establish a dedicated query site or self-built website, by entering the appropriate tensioning device number And Tension Date Query Download Tension Parameters. Or directly from the site monitoring computer to the owners of supervision. At the same time the main pump control module can store about 40000 of the tensile data to prevent transmission problems caused by the loss of tension parameters.
Features of Intelligent Automatic Tension Equipnent:
1. Control module (1 control 2)
2. Ûn-site moni toring computer (Lenovo Zhaoyang E464370 notebook computer )
3. Data tr ansmission module (main pump and auxiliary pump 200M range, the main pump and on- sitemoni toring computer 2KM or less)
4.7 inch touch screen (main pump) text display (vice pump)
5. Displacement sensor (precision 0. 1mm) Pressure sensor accuracy 0. 1MPa0
6. High- pressure hydraulic control valve (63MPa)
7. The main pump storage U disk [(4G)
8. The system can control one jack for single strand jacking and stressing.
9. The system also can control 2 or 4 sets of jacks for stressing, which make multi- items simul taneousand balanced stress.
10. Control the tension forcee and measure the prestress elongation &force precisely. Make the additional tension and collect the prestress elongation automatically, correct the elongation & forcedevi ation.
11. Wireless control, remote monitoring, easy operation and high maintainability.
12. Intelligent data analysis and processing, all kinds of required sheets can be gener atedautomatically.
Application of the Post Tension Intelligent Hydraulic Pump Station:
1). For Buildings: Housing, Commercial Buildings, High Rise Buildings.
2). For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.
3). For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers, Water Conservancy Project, Oil or Gas Tank, etc.
