Products Description

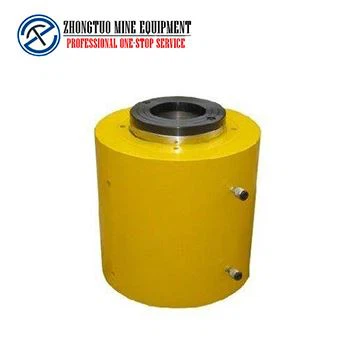

Hydraulic jacks are equipped with high-strength gaskets for maximum durability up to 60° C, upon request, it is possible to equip the cylinder with gaskets resistant to high temperatures up to 200° C. Furthermore, the presence of the wiper prevents contamination from impurities present in the environment of use.
Contact: Summer
Mobile/Wechat/Whatsapp: +86 13571973823
Email: summer@ztmineequipment.com
Technical Parameters
|
Model |
Tonnage |
Stroke (mm) |
Body height (mm) |
Stretch height (mm) |
Cylinder outside Diameter (mm) |
Weight (Kg) |
Maximum working pressure (Mpa(bar)) |
|
DS-50×4 |
5 |
6.35 |
40 |
46.35 |
64×52 |
1.0 |
40(400) |
|
DS-100×4 |
10 |
11.2 |
48 |
59.2 |
83×66 |
1.4 |
63(630) |
|
DS-200×4 |
20 |
11.2 |
56 |
67.2 |
100×84 |
3.1 |
63(630) |
|
DS-300×4 |
30 |
12.7 |
66 |
78.7 |
128×105 |
4.5 |
63(630) |
|
DS-500×4 |
50 |
16 |
75 |
91 |
145×128 |
6.8 |
63(630) |
|
DS-750×4 |
75 |
16 |
86 |
102 |
188×158 |
11.4 |
63(630) |
|
DS-1000×4 |
100 |
16 |
96 |
112 |
208×182 |
14.5 |
63(630) |
|
DS-1500×4 |
150 |
16 |
106 |
122 |
250×220 |
26.3 |
63(630) |
Features
Sectors of use: steel mills, energy, industry, infrastructure, engineering and testing, mining, shipbuilding, offshore, oil & gas, and transport.
Possibility to design and produce custom-made hydraulic cylinders on request, with dedicated geometries, performances, and features.
All models can be connected to different drive units such as hand pumps or electric, air, and petrol pumps. A wide range of accessories such as hoses, valves, and pressure gauges are available for the composition of the desired hydraulic circuit.
Field Applications
1. Long-term support for bridge maintenance.
2. Long-term support for high-speed rail box girder prefabricating.
3. Long-term support for large-scale steel structure welding.
4. Synchronous pushing of the prefabricated beam in high-speed rail construction.
5. Synchronous lifting and transferring of the high-speed rail box girder.
6. Synchronous pushing of the prefabricated beam in high-speed rail construction.
About Zhong Tuo
Shaanxi Zhongtuo Mining Equipment Co., Ltd. was located in the ancient city of Xi'an in 2005. The company focuses on the production and development of intelligent equipment, and the research and development results of 20 invention patents, some of which have completed intelligent, digital, and automated upgrading and transformation. The products are used in bridge construction, tunnel and subway construction, mining and hydropower new energy projects, and provide one-stop procurement services for the use of design solutions. Exquisite craftsmanship and a rigorous inspection process ensure the smooth progress of the project.
