Product Description

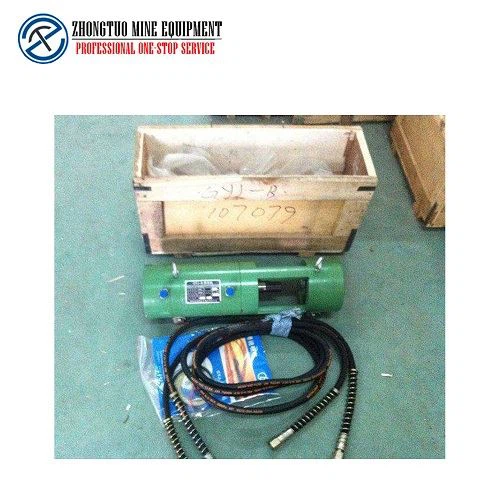

CNM GYJ500A Post-tensioning Compression Fitting Machine
1. Describtion:
GYJ500A extruding machine is a special equipment which used to extrude swages anchors, to make become fixed end anchor, for fixing use. It have feature of light weight, compact structure, easy operation, etc. It is used widely in prestressing construction.
2. Suitable Anchorage Diameter: 12.7mm(0.5"), 15.24mm(0.6").
3. Usage: extruding swage anchors to make them become dead end anchroage for fixing use.
4. Applications: bridges, high buildings, tunnels, railway, highway, coal mine, underground structures, basement, etc.
5. Features:
1.) GYJ series extrusion machine is the special equipment of making the P fixed- end anchorage.
2). It is light and simple operation etc, and can squeeze LBM 15P and LBM13P extruding set.
3). For prestressing and post-tensioning use.
4). Have a good perfomace and good quality.
6. GYJ500A Extrusion Machine Technical Data:
1. Describtion:
GYJ500A extruding machine is a special equipment which used to extrude swages anchors, to make become fixed end anchor, for fixing use. It have feature of light weight, compact structure, easy operation, etc. It is used widely in prestressing construction.
2. Suitable Anchorage Diameter: 12.7mm(0.5"), 15.24mm(0.6").
3. Usage: extruding swage anchors to make them become dead end anchroage for fixing use.
4. Applications: bridges, high buildings, tunnels, railway, highway, coal mine, underground structures, basement, etc.
5. Features:
1.) GYJ series extrusion machine is the special equipment of making the P fixed- end anchorage.
2). It is light and simple operation etc, and can squeeze LBM 15P and LBM13P extruding set.
3). For prestressing and post-tensioning use.
4). Have a good perfomace and good quality.
6. GYJ500A Extrusion Machine Technical Data:
Model |
GYJ500A |
| Rated Extrusion Force(KN) | 475 |
| Rated Oil Pressure(Mpa) | 50Mpa |
| Extrusion Cylinder Area(MM³) | 9503.3 |
| Return Oil Pressure(Mpa) | <10 |
| Weight(KG) | 65 |
| Over Dimension(MM) | 200x200x605 |
