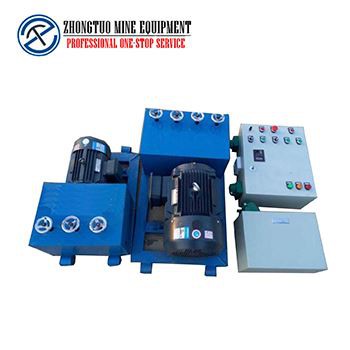

Anchor Cable Push Machine

Feature of PC strand pusher machine:
1. ZT strands pusher machine can push PC strand continuously
2. It has the features of easy operation, reliable performance, and efficiency significantly
. 3. The machine reduces labor and is widely used for large-scale bridges and constitutive objects.
4. High performance with good quality5. It is the main tool of through strands in building bridges and a large building with Prestressing work.

anchor cable pushiing machine

Working Principle:
The reducer drives the double drive wheel to rotate, the steel hinge wire is inserted from one end of the wire inlet, and the drive wheel and the double bushing wheel press the steel hinge wire to move forward along the pipe into the reserved hole until the other end of the hole passes through to reach the tension Use the size.

Application:

It is the ideal tool for threading construction machinery. It is the main tool for steel bridges in the prestressed work in the construction of bridges and large buildings.

Specification:

Model	Diameter of pc strand	Distance of pushing	Voltage	Power	weight	Size
Model	Diameter of pc strand	Distance of pushing	Voltage	of motor	weight	Size
	mm	m	v	kw	kg	cm
LS-4	12 to 16	50	380/220	4	120	55×40×24
LS-5.5	12 to 16	150	380/220	5.5	180	64×44×24
LS-7	12 to 16	200	380/220	7	230	95×44×40

If you want to learn more details about this machine, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998

Preparation for the procedure:

1. Check if the electrical circuit is in good condition and check the oil level in the reducer.

2. Check the direction of motor rotation and whether it conforms to the direction marked by the arrow on the casing.

3. Turn on the power, and debug to determine the positive and negative reversal.

4. Hang the steel strands to the end of the prefabricated beam, about 10 meters away from the precast beam, fix it with a steel strand cage, and open the bundle.

5. Install the cable machine in place.

6. Pass one end of the stranded wire through the stringing machine.

7. The other end of the beam starts the power supply of the cable machine, and the cable machine starts to work.

8. When the steel strand is connected to the other end of the beam when the exposed length of the steel strand is reached, the power controller closes the power supply of the cable and simultaneously operates at one end of the steel strand.

9. Put on a steel strand.

post-tensioning strands pusher machine
