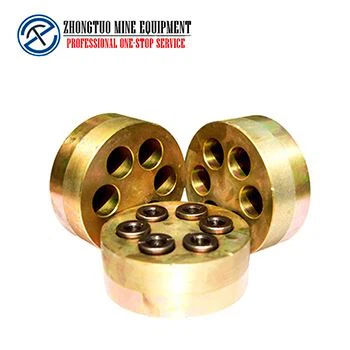

Feature:
1. The connection between the anchor sleeve and the steel strand is reliable and the safety is high. The bundle of steel strands penetrates into the anchor sleeve, and the pressing force and the pressing length of the pressing machine can be adjusted according to the force demand so that the anchoring force of the steel strand is generated by the plastic deformation of the anchor sleeve after being pressed. It can ensure that the wire is not slipped; at the same time, the hardness of the anchor sleeve is lower than that of the steel strand, the damage to the steel strand is not large, and a higher anchoring efficiency coefficient can be achieved. In addition, regardless of the force of the strand, the anchoring force of the anchor sleeve is constant, and the steel strand stress and even the negative stress will not loosen.
2, multiple anti-corrosion. Each steel strand is coated with anti-rust grease, and after a single pack of polyethylene, the whole bundle is wrapped with a polyethylene tube.
3. The heat-shrinkable outer sheath is wrapped around the outer circumference of the anchor sleeve to seal and protect the external thread during transportation.
4. There are spacers between the steel strands in the anchor sleeve, and corresponding steel strands can be used according to different tonnages.
Feature:
1. The connection between the anchor sleeve and the steel strand is reliable and the safety is high. The bundle of steel strands penetrates into the anchor sleeve, and the pressing force and the pressing length of the pressing machine can be adjusted according to the force demand so that the anchoring force of the steel strand is generated by the plastic deformation of the anchor sleeve after being pressed. It can ensure that the wire is not slipped; at the same time, the hardness of the anchor sleeve is lower than that of the steel strand, the damage to the steel strand is not large, and a higher anchoring efficiency coefficient can be achieved. In addition, regardless of the force of the strand, the anchoring force of the anchor sleeve is constant, and the steel strand stress and even the negative stress will not loosen.
2, multiple anti-corrosion. Each steel strand is coated with anti-rust grease, and after a single pack of polyethylene, the whole bundle is wrapped with a polyethylene tube.
3. The heat-shrinkable outer sheath is wrapped around the outer circumference of the anchor sleeve to seal and protect the external thread during transportation.
4. There are spacers between the steel strands in the anchor sleeve, and corresponding steel strands can be used according to different tonnages.
Specification:
ZT15(13)-6,7 | 127(108) | 50 (55) | 190 (165) | 160 (150) | 70(60) | 200(190) | 50(50) | 14 (14) | 4(5) | YDC2000 (YDC1500) |
ZT15-8 | 137 | 60 | 230 | 180 | 80 | 240 | 60 | 16 | 5 | YDC2000 |
ZT15(13)-9 | 154 (128) | 60 (60) | 240 (180) | 190 (160) | 80(60) | 240(220) | 60(50) | 16 (16) | 5(5) | YDC2500 (YDC1500) |
ZT15(13)-10 | 167 | 60 | 250 | 210 | 80 | 270 | 60 | 16 | 6 | YDC2500 |
ZT15(13)-11/12 | 167 (148) | 60 (60) | 260 (215) | 210 (190) | 90(80) | 270(240) | 60(60) | 16 (16) | 6(5) | YDC3000 (YDC2000) |
