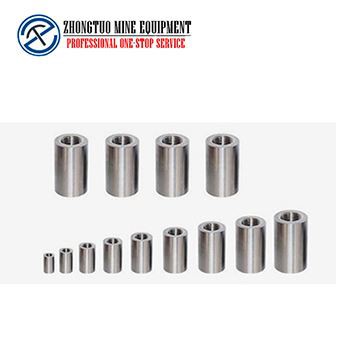

Brief Introduction of rebar connecting sleeve coupler:
Concrete grouted rebar coupler is specially designed to join reinforcing bars in precast construciton. Reinforcing bars to be spliced are inserted into grout sleeve and filled with grout, connecting various precast components such as columns, beams and shear walls. The performance of grout rebar splicing system meets different requirements of interenational buidling standards, such as EuroCode 2, BS8110, ACI318 and JGJ1 etc.
Two types:
CT type and CTH type. CT sleeve couplers consist of a thread end where the threaded rebars are turn in and the other end of sleeve to be grouted. CTH is a fully grouted sleeve used when both rebars to be joined are not threaded.
Detailed Specification of rebar connecting sleeve coupler
| Model of sleeve | Rebar size splicing (mm) | Sleeve Diameter(D) ×Length(H)(mm) | Rebar Embedment minimum Depth(mm) | Internal diameter of grouting sleeve D1(mm) |
| CT20H | Φ20,Φ18,Φ16 | 46×320 | 145 | 34.2 |
| CT22H | Φ22,Φ20,Φ18 | 50×350 | 160 | 37 |
| CT25H | Φ25,Φ22,Φ20 | 55×400 | 185 | 39.8 |
Remark:
1-above are standard sleeve size;
2-sleeve is made of: quality carbon structural steels or Alloy structrual steels;
3-Mechanical properties: Tensile strength≥600Mpa; Yield strength≥355Mpa; Percentage elongation after fracture≥16%.
Features:
1. Save material and energy,shorten construction period,cost effectively.
2. Finishing connection of sleeve one side with rebar at the factory–Eliminating problems of axis shifting sleeve with rebar and canceling seal part for sealing the
gap of sleeve with rebar.
3. The length of the sleeve is shorter than the conventional couple that two side fill the grout for splicing the rebar, since one side of the sleeve spliced the rebar by
thread.
4. It will need lower grouting pressure during filling high-strength cementitious grout, and easier sealing for horizontal gap that linking sleeve in precast concrete
members on site.
