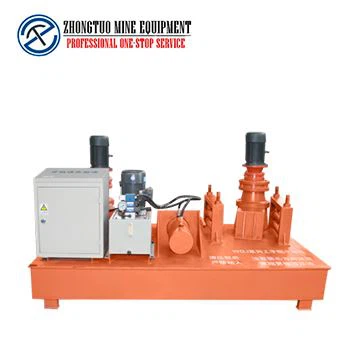

Built-up H-Beam With Bending Radium Over 2 Meters
video
Built-up H-Beam With Bending Radium Over 2 Meters

Built-up H-Beam With Bending Radium Over 2 Meters

Built-up H-Beam is a kind of section bending machine：
1.it is very common in various constructing.
2. Reinforced bottom to ensure there is no distortion, and the two main wheels' center distance could be adjusted from 2.1m to 1.45m, when smaller work is required, the main wheel holds the center of 1.45m.
3. It is easy to change parts, and does not need re-calibration. The operator can make a sliding platform on both ends of the workpiece to save cost.
Send Inquiry

Description of built-up H-beam:

The cold bending machine is mainly used in tunnels, subways, hydropower stations, and underground caverns. By switching mold can do arched rolling, diameter changes, fixed-angle bending of U-shaped steel, I beam, H beam, Channel steel, Angle steel, Track steel, Square steel, and Steel pipe or bar.

CNC hydraulic arch bending machine system: the use of a hydraulic system, with a smooth transmission, pressure, and other characteristics. Mainly used in tunnels, subways, hydropower stations, underground holes, and other I-beam, channel bending.

Three steel plates are assembled into one H-beam. Following measurement and calibration, the points are welded together, after which a latent welding machine is used to complete the welding. Finally, a three-point roller force method is used to straighten the wings and to rectify welding beads. This is followed by a heat shaping process and various inspections of product quality prior to completion of the production process.

built-up H-beam

Parameters of built-up H-beam:

Profile specifications

14-32 I-beam

Minimum bending radius

≥ 2m

Cylinder sliding speed of

8-15mm / sec

Driving wheel speed

7-10r / min

Hydraulic system power

25mpa

Total power

11.9kw

Machine weight

2380KG


built up H-beam

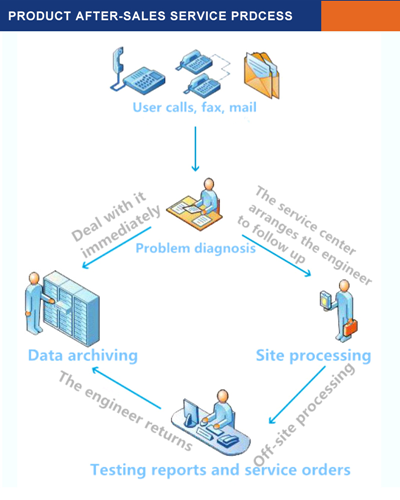

You are buying = Our Products + Our Service :

1, Quality is our culture, strict QC/QA systems under GMP factory.

2, Fast and safe delivery with a secure and discreet shipment.

3, With us, your money is safe as well as your business. It's our promise to you!

4, For whatever questions about us or our products you may have, do let us know and you can be assured we reply to you in detail within 24 hours and to your satisfaction.

5, Warmly welcome your visit to our company if available.

built up H-beam
