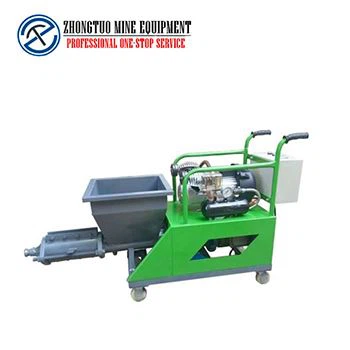

Cement Mortar Spraying Machine Supplier

Feature:
1: Material saving: without material falling down from the wall when working, can save cost about 20%
2: Easy Operation : No need to build working support frame , or move machine when working , can save time and labor cost , also it has remote control , and turn on and turn off easily at any time
3: wide Spraying area : wether Corner or house ceiling , it can spray easily , also it can spray water proof material and fireproof material
4: Labor saving : it can spray 1000-1500m2/day , this equals to 20 workers work for one day ,

Description of cement mortar spraying machine

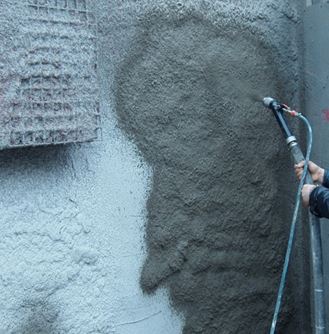

It is mainly used in the building construction industry, both inside and outside walls for plastering and spraying mortar, external wall insulation mortar spraying, the materials can be mortar roughcast, refractory coating, large building spraying fire materials, waterproofing coating, and so on.

1 In the construction engineering industry, the machine is used for horizontal and vertical transferring and spraying mortar or cement.

2. In the chemical and paper industry, delivering the raw pulp material and waste materials.

3. In coal-fired power plants, the machine is used to deliver the fine coal mortar.

4. In the mining tunnel construction industry, the machine is used to grout and protect the slope

cement mortar spraying machine-01

Specification:

SPECIFICATIONS FOR MORTAR SPRAYING MACHINE
Model	HW-51J MORTAR SPRAYING MACHINE	Air compressor	2 sets
Max. grain size	10mm	Pressure	8Mpa
Voltage	380V	Pipe diameter	51mm
Delivery height	40m	Power	13.5Kw
Horizontal delivery distance	80m	Mixer size	700*500mm
Hopper capacity	50L	weight	380kg
Water:Motar : Sand	1:1:3	Packing size	21080145cm

Operating remark:

1. Before each shift, first press the hand oil pump several times to fill the transmission part.

2. After turning on the power, first start the main motor, and check whether the rubber conveying spiral rotation direction is consistent with the direction indicated by the arrow. If it is inconsistent, replace the power phase line. Note that this check is performed each time the power is turned back on.

3. Connect the hose and nozzle. Add 5 liters of clean water to the hopper, start the motor and pump out the water to wet the hopper, pump body, and conveying hose. After pumping most of the water out, you can stop it.

4. Add the proportioned mortar (or paint) to the hopper, start the air compressor and the damper, and start spraying.

5. After the work is finished, immediately drain the remaining material in the hopper, inject enough water into the hopper to thoroughly clean the hopper, and then pump it out to clean the hose and the nozzle until the pump is full of clean water. Only after the cleaning is over. In order to avoid the residual material condensing in the hopper, hose, and nozzle, plugging the hose and the nozzle, affecting the service life of the equipment. a7938807cd5ca435aa7737c978a9376
