Fully Automatic Solar Panel Cleaning Robot Panel Cleaning Machine

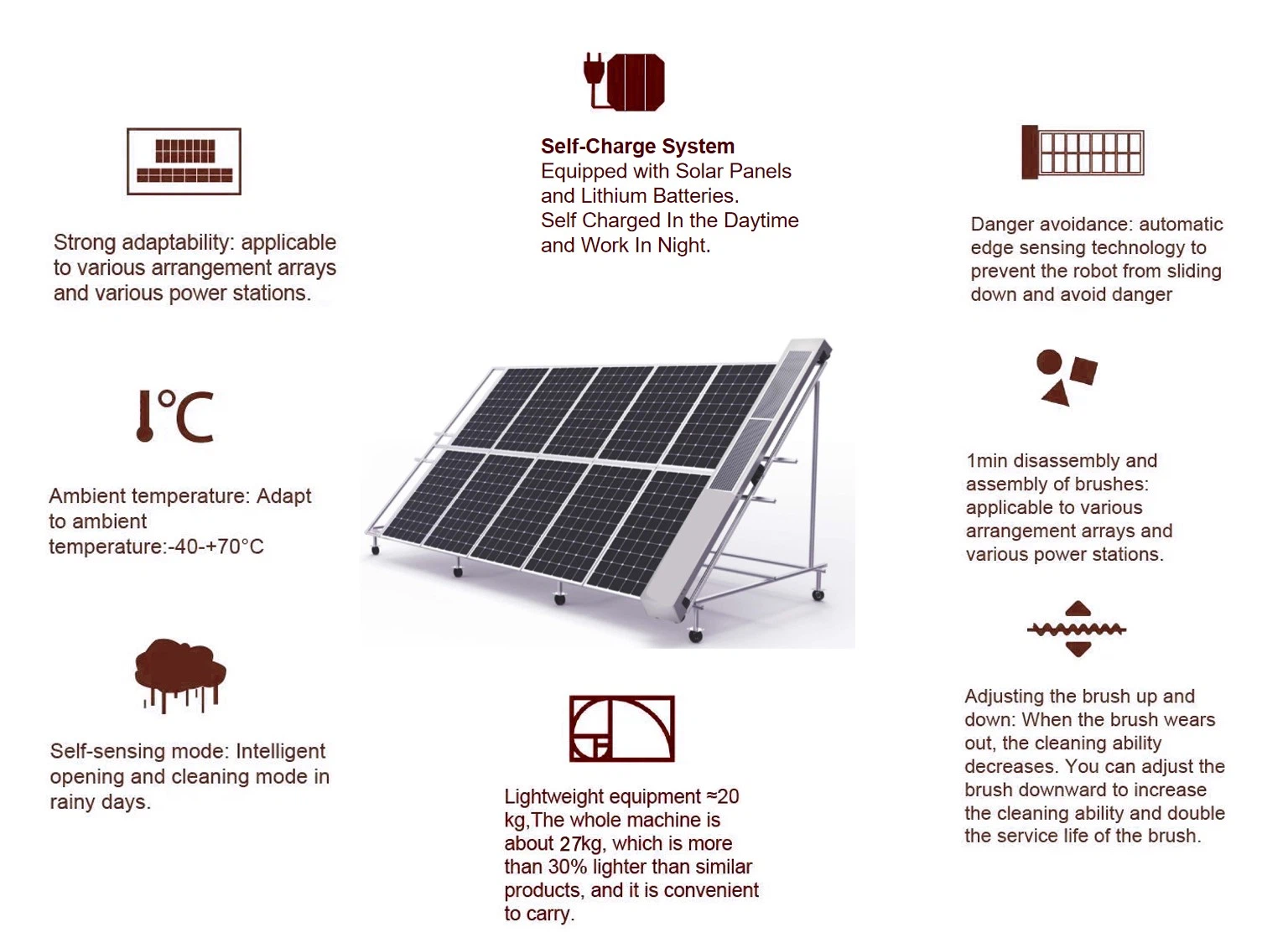

The fully automatic solar panel cleaning robot mainly comprises the robot body, data transmission system, positioning system, power system, battery, operation APP, and cloud platform monitoring system.
The robot adopts a brilliant, fully automated, unattended cleaning mode and is applied to photovoltaic power stations in the light
Volt components of the cleaning operation and maintenance work, through high-precision satellite positioning intelligent cleaning components of the cleaning robot, with autonomous navigation, autonomous positioning, autonomous cleaning, and autonomous charging function. It can carry out cleaning tasks without manual intervention under non-special circumstances. Under special circumstances, it can be switched to manual remote control mode.
Technical Parameter of Fully Automatic Solar Panel Cleaning Robot Panel Cleaning Machine
|
Product Model |
ZTZD-20 |
|
Product Name |
Automatic solar panel cleaning machine |
|
Dimension |
1200*700*240 mm |
|
Power Mode |
lithium battery |
|
Battery Capacity |
40AH |
|
Operating Power |
200W |
|
Battery Life |
6 hours |
|
Controllers |
Industrial PCs (self-developed) |
|
Control Mode |
Fully Automatic, Remote Control |
|
Control Platform |
(Small Program),Web |
|
Communication Protocols |
RS-485 |
|
Protection Class |
IP65 |
|
Working temperature |
-10~50℃ |
|
Design Lifetime |
6 years |
|
Cleaning Mode |
Waterless, Washed |
|
Cleaning Width |
1100 mm |
|
Travel speed |
0-20 m/min (adjustable) |
|
Cleaning Efficiency |
1200 ㎡/h |
|
Maximum Longitudinal Slope |
≤20° |
|
Maximum Lateral Slope |
≤15° |
|
Module Surface Coverage |
120% |
|
Travel Across Distance |
≤600 mm |
|
RTK Horizontal Positioning Accuracy |
1.0 cm+ 1 ppm(RMS) |
|
Anti-Drop Aid |
Support |
|
4G Communication Module |
Support |
|
Night work |
Support |
|
visualization system |
optional |
If you want to learn more details about this machine, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998
Main Technique Features of Remote Control Crawler Photovoltaic Cleaning Robot
1. Fully intelligent, automated, unattended sweeping
2. High cleaning efficiency
3. Minimal turning radius, no sweeping dead ends
4. High level of waterproof, dustproof and anti-fogging
5. Mobile APP / small program or computer web-based software, remote real-time view of the operating status
6. Supports customization and is highly scalable
Unique High-Precision Border Cleaning Technology
Autonomously Without Human Control
MM-level positioning accuracy;Up to 34TOPS computing power performance;5ms suspension judgment
Millisecond-level real-time deviation correction ability; Millmeter-level dynamic balance control accuracy.
Shaanxi Zhongtuo Mine Equipment Co., LTD
Shaanxi Zhongtuo Mine Equipment Co., Ltd, founded in 2008 in Shaanxi Xi'an, The World Capital City of Machinery Manufacturing, is a high-tech enterprise founded by the senior management team of China's well-known robot enterprises. Zhongtuo Solar Cleaner set out with an original concept to create a dry cleaning brush solution for solar panels. The aim was to provide a feasible solution to the power generation problem of manufacturing industries such as solar power plants, cement plants, and aluminum in remote areas and deserts, to solve the problem of reduced solar production efficiency caused by pollution.
Professional technology
China accounts for 50% of the world's photovoltaic industry market
Guided by a high-quality industrial environment, our product updates and iterations have become more mature and professional in the field of cleaning tools.
7x24 hours delivery
Located in 27 cities around the world, with 50 delivery centers, providing 200+ languages, 7x24 hours delivery capacity, is the best partner for enterprise globalization
Application scenarios
The complementary modes of agricultural, fishery, and forest light are new models for the construction of photovoltaic power stations.
Fsrming-solar hybrid project
Fully automatic cleaning equipment can achieve unmanned automatic cleaning. It can ensure the growth of plants and the efficient cleaning of photovoltaic panels to recover 40% of the losses caused by dirty photovoltaic panels.
Fishery-solar hybrid project
The fully automatic cleaning equipment can achieve unmanned automatic cleaning, and after cleaning is completed, it can recover the power generation loss caused by dirty photovoltaic panels.
parking Shed Solar
The location of the carport in the outdoor parking lot is special and cannot be manually cleaned. The fully automatic cleaning equipment can achieve unmanned automatic cleaning.
Manufacturing plant roof solar
Fully automatic cleaning equipment can achieve unmanned automatic cleaning for manufacturing photovoltaic power generation
Packaging details:
1. Outer packaging: standard sea export bakelite box;
2. Inner packaging: stretch film, moisture-proof plastic film;
3. Customized according to your requirements.
Shipping
1. Port: Tianjin, Qingdao, Shanghai, or other ports according to your requirements.
2. Shipping: FOB/CIF/DDU quotations are available.
3. Mode of transportation: Logistics; by car; by train; by transportation; by air, etc.
