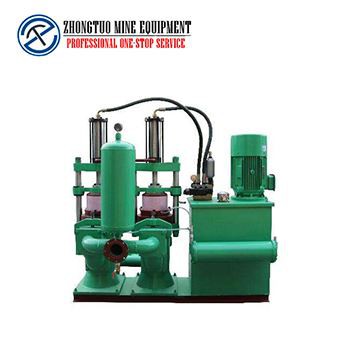

Description of Ceramic plunger mud pump:
A mud pump or drilling mud pump is used to circulate drilling mud on a drilling rig at high pressure.
The mud is circulated down through the drill string, and back through the annulus at high pressures.
The ceramic plunger mud pump for vertical double cylinder porcelain piston pump. It is divided into two kinds quantitative and variable, is designed for pressure transmission mud type working medium designed. Quantitative pumps can be used in the spray dry noise tower and other pressure transmission fields; variable sludge piston pumps can be adapted to the filter press dehydration process to flow pressure changes.
If you want to learn more details about this machine, please contact :
Email: Jenny@ztmineequipment.com
Whatsapp:+8613201801998
Parameters of plunger mud pump:
| Model | Limited data(m3/h) | Pressure range(mpa) | Preset pressure(mpa) | Red times (times/min) | Stroke(mm) | Motor power(kw) | Dimensions(L*W*H) | Total weight(kg) |
| YB-85 | 3.0 | 0-2.0 | 2.0 | 24 | 200 | 4 | 1230*850*1600 | 550 |
| YB-120D | 7.1 | 0-2.5 | 2.0 | 24 | 200 | 11 | 1600*1200*1900 | 850 |
| YB-120G | 7.1 | 0-3.0 | 2.5 | 24 | 250 | 11 | 1600*1200*1900 | 850 |
| YB-140D | 10 | 0-2.5 | 2.0 | 26 | 250 | 11 | 1600*1200*1900 | 900 |
| YB-140G | 10 | 0-3.0 | 2.5 | 26 | 250 | 11 | 1600*1200*1900 | 900 |
| YB-200 | 19 | 0-2.5 | 2.0 | 26 | 250 | 18.5 | 1700*1300*2000 | 1300 |
| YB-250 | 30 | 0-2.5 | 2.0 | 22 | 250 | 22 | 1960*1700*2150 | 1800 |
