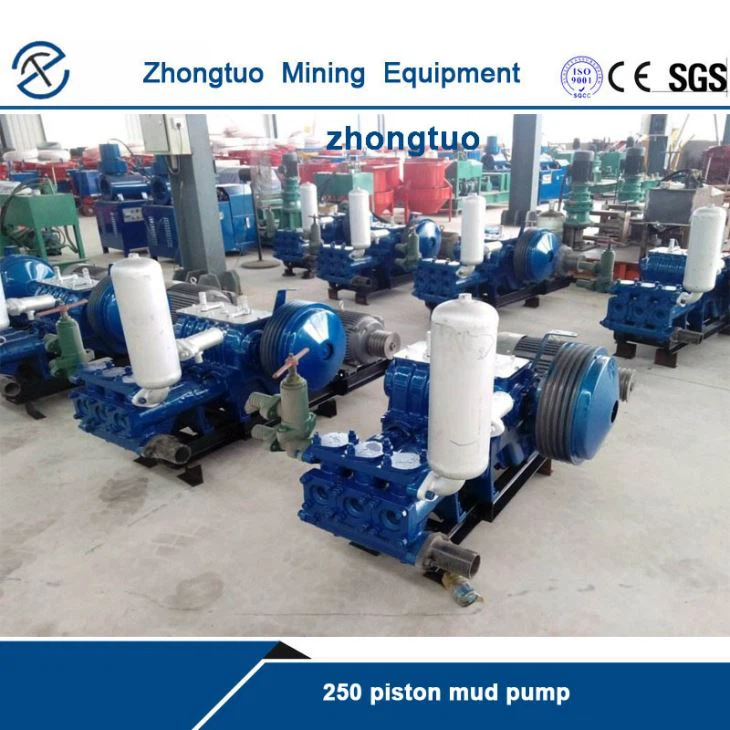

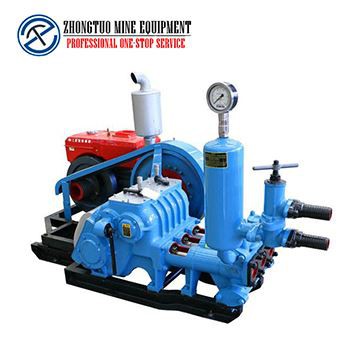

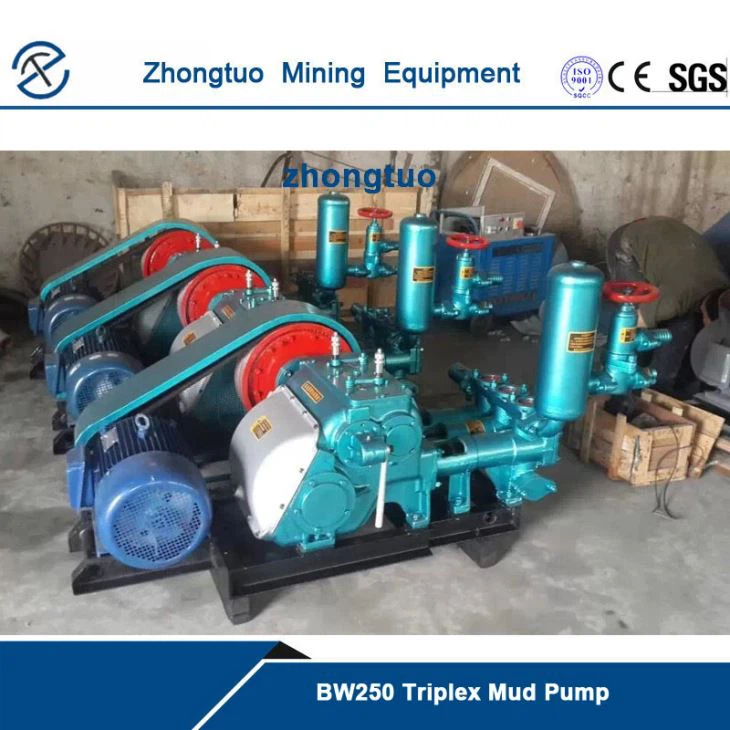

BW-250 Horizontal Triplex Piston Mud Pump

Description of BW-250 Horizontal Triplex Piston Mud Pump:

The BW-250 Horizontal Triplex Piston Mud Pump can be used as supporting equipment for a 1000-meter large-aperture drilling rig. It has a four-speed displacement. The flushing fluid used should not contain chemical impurities that can corrode metal and rubber parts. The recommended specific gravity when using mud is 1.03-1.10, the viscosity is 18-25 seconds, the sand content is not more than 4%, and the PH value is 7-8. There should be no debris, weeds, leaves, etc. that block the water filter in the mud. The length of the suction pipe should not exceed 5-6 meters.

The Advantages of the BW-250 Horizontal Triplex Piston Mud Pump:

1. It has four blocks of flow that can meet the requirements of large and small diameter drilling rigs, with a large flow adjustment range and reasonable parameter selection. It can be used with an XY-4 core drilling rig and XY-5 type drilling rig. It can meet the needs of different diameters, different hole depths, and different geological core drilling.

2. There are five dust-proof sealing rings on the pull rod to prevent the mud from the hydraulic end from being brought into the power end and the power end lubricating oil filter. Many production tests have proved that the seal is reliable and the performance is good. Causes the gear to extend the service life.

3. The inlet and outlet valves use steel balls. And there is a sound-absorbing rubber pad on the valve cover to reduce impact noise.

4. The pressure gauge adopts a BY-1 type seismic pressure gauge with long life.

Parameters of BW-250 Horizontal Triplex Piston Mud Pump:
