Instruction:

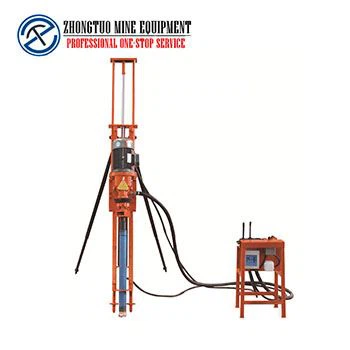

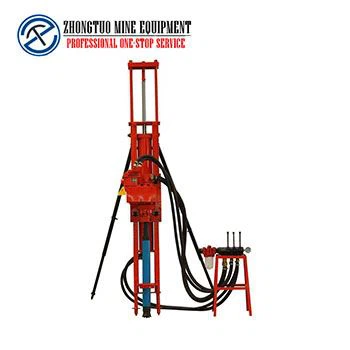

DTH drilling rig series submersible engineering drilling rigs are submersible electric rotary drilling rigs, which are ideal hole-forming machines for drilling cast-in-place piles. It can also be used in the construction of underground diaphragm walls and anti-seepage curtains for shafts. It is suitable for drilling in various formations such as silt, clay, gravel layer, and weathered shale. It is widely used in the basic construction of industrial and civil construction, transportation, water conservancy, electric power, port, and other projects.
Application of DTH Drill:
Portable DTH Drill Widely applicable to the mining, water conservancy, highway, construction, blasting, and other projects, the host can be directly water injection operations, a blast hole drilling machine particularly suitable for drilling when the soil tunneling, can replace ordinary stones.
Details information:
| Model | ZTD70 | ZTQ70 | ZTD100 | ZTQ100 |
| Drilling Diameter | 50-90mm | 50-90mm | 90-130mm | 90-130mm |
| Drilling Depth | ≤15m | ≤15m | ≤25m | ≤25m |
| Working Pressure | 0.5-0.7Mp | 0.5-0.7Mp | 0.5-1Mp | 0.5-1Mp |
| Rotation Speed | 110r/m | 110r/m | 110r/m | 110-160r/m |
| Drilling Pipe | Diameter | 42mm | 42mm | 50-60mm |
| Length | 1025mm | 1025mm | 1025mm | 1025mm |
| Size | 1740*260*420mm | 1740*260*420mm | 2280*400*550mm | 2280*380*550mm |
Daily maintenance of Pneumatic Hydraulic DTH Drilling
1. Wipe the outer surface of the DTH drilling rig clean, and pay attention to the cleaning and good lubrication of the surfaces such as the slideway of the base of the DTH drilling rig and the vertical shaft.
2. Check whether all exposed bolts, nuts, safety pins, etc. are firm and reliable.
6. Clean the filter in the oil tank and replace the deteriorated or dirty hydraulic oil.
7. Check the integrity of the main components, if damaged, replace them in time, and do not work with injuries.
Packaging & Shipping
In order to protect the portable DTH rock mine drilling rig and avoid damage during transport, our rock drilling rig adopts a wood box package. And we also provide customized packages of our mine drill rig.
