Description of rock drill chisel bits:

Taper rock drill bits have three types: Chisel bits, button bits, cross bits rock drill tapered chisel bits are suitable for H22MM and H25MM taper rock drill rods use. It has three taper degree:7,11,12. It's widely used for hard rock(f=8~18) drilling use.

The tapered chisel bits are widely used in drilling holes with depths less than 5 meters and diameters ranging from 20-45MM by light-duty rock drills, like Y6.

Diameter Weight

Dia Tip Size Taper

Type mm inch H*W kg

Chisel BIT	26	1 1/32	13*8	7	0.24
	28	1 7/64	13*8	7	0.28
	30	1 3/16	13.5*8	7	0.28
	32	1 1/4	13.5*8	7	0.3
	34	1 11/32	13.5*8	7	0.34
	36	1 27/64	13.5*8	7	0.36
	38	1 1/2	13.5*8	7	0.38
	40	1 37/64	13.5*9.2	7	0.4
	42	1 2/3	13.5*9.2	7	0.42
	20	25/32	12*6	4	0.12
	22	55/64	12*6	4	0.16
	24	15/16	13*8	4	0.18
	26	1 1/32	13*8	4	0.22
	28	1 7/64	13*8	6	0.26
	30	1 3/16	13.5*8	7	0.28
	32	1 1/4	13.5*8	7	0.32
	33	1 19/64	13.5*8	7	0.33
	34	1 11/32	13.5*8	7	0.35
	36	1 27/64	13.5*8	7	0.35
	38	1 1/2	13.5*8	7	0.39
	40	1 37/64	13.5*9.2	7	0.4
	41	1 5/8	13.5*9.2	7	0.41
	42	1 21/32	13.5*9.2	7	0.42

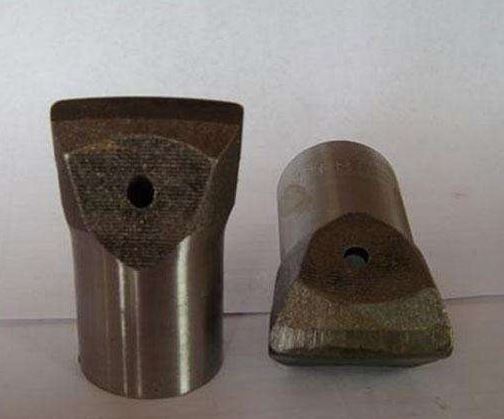

rock drill chisel bits-02 rock drill chisel bits-05

rock drill chisel bits-01
