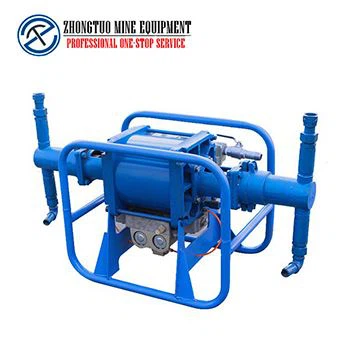

Description of High-Pressure Pneumatic Injector Pump:
The working principle of the single-chamber reciprocating pump is shown in Fig.
1. When the crank rotates counterclockwise at the angular velocity ω, the piston moves to the right, the volume of the cavity suddenly increases, the liquid pressure in the cavity decreases, and the suction valve opens under the external pressure. The discharge valve is closed, and the liquid to be conveyed enters the cavity under the pressure difference against the resistance loss of the suction pipe and the suction valve. When the crank rotates 180°, the piston moves to the left, and the liquid is squeezed. The fluid pressure in the body increases sharply. Under this pressure, the suction valve is closed and the discharge valve is closed. The liquid in the chamber is discharged to the discharge line under the pressure difference. When the crank rotates at an angular velocity ω, the reciprocating pump continuously draws in and discharges the liquid.
The High-Pressure Pneumatic Injector Pump is suitable for grouting and water blocking, filling voids, and reinforcing broken rock layers in mines, tunnels, water conservancy, subways, buildings, bridges, and other construction sites.
Parameter of High-Pressure Pneumatic Injector Pump:
| Rated displacement | 20L/min |
| Present pressure | 5mpa |
| Number of sand cylinders | 2 |
| Into the pulp pipe diameter | 32mm |
| Total weight | 90kg |
